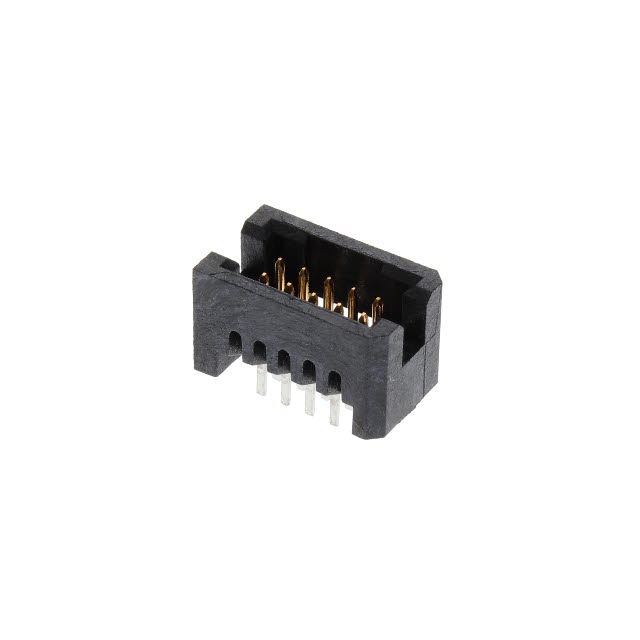

TFML-105-01-S-D
Or copy the link below:
- Mfr.Part #
- TFML-105-01-S-D
- Manufacturer
- Samtec, Inc.
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 10POS 1.27MM
- Stock
- 2,401
- In Stock ：
- 2,401
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Samtec, Inc.
- Product Category :
- Headers, Male Pins
- Gender :
- Male
- Insulation Material :
- Liquid Crystal Polymer (LCP)
- Contact Shape :
- Square
- Number of Rows :
- 2
- PCB Contact Pattern :
- RECTANGULAR
- Pitch - Mating :
- 0.050 1.27mm
- Series :
- Tiger Eye™ TFML
- Body Length or Diameter :
- 0.375 inch
- Published :
- 2009
- Plating Thickness :
- 30μin
- Factory Lead Time :
- 3 Weeks
- Row Spacing - Mating :
- 0.050 (1.27mm)
- Number Of PCB Rows :
- 2
- Contact Material :
- Phosphor Bronze
- Rated Current (Signal) :
- 5A
- Contact Length - Mating :
- 0.134 3.39mm
- Additional Feature :
- RoHS Compliant
- Contact Length - Post :
- 0.075 1.91mm
- Mount :
- Through Hole
- Contact Finish - Post :
- Tin
- Contact Finish - Mating :
- Gold
- Polarization Key :
- POLARIZED HOUSING
- ECCN Code :
- EAR99
- Material Flammability Rating :
- UL94 V-0
- Number of Positions :
- 10
- REACH SVHC :
- No SVHC
- Radiation Hardening :
- No
- Connector Type :
- Header
- Termination :
- Solder
- Packaging :
- Tube
- Operating Temperature :
- -55°C~125°C
- Reliability :
- COMMERCIAL
- Insulation Height :
- 0.220 5.60mm
- Insulation Color :
- Black
- Number of Conductors :
- ONE
- Mating Contact Pitch :
- 0.05 inch
- RoHS Status :
- ROHS3 Compliant
- Contact Finish Thickness - Mating :
- 30.0μin 0.76μm
- Style :
- Board to Board or Cable
- Contact Type :
- Male Pin
- Fastening Type :
- Friction Lock
- Reference Standard :
- UL, CSA
- HTS Code :
- 8536.69.40.40
- Shrouding :
- Shrouded - 4 Wall
- Number of Positions Loaded :
- All
- Mounting Type :
- Through Hole
- Datasheets
- TFML-105-01-S-D
TFML-105-01-S-D Documents
Tiger Eye™ TFML Series 2-Row Header Solder Phosphor Bronze Tube Through Hole Gold Liquid Crystal Polymer (LCP) 10-Position Board to Board or Cable 0.220 5.60mm Height
TFML-105-01-S-D Overview
The product is packaged in Header.This device is mounted in the Through Hole position.It has been determined that a Tube case is necessary to package the product.There is a product in the Tiger Eye™ TFML Series.To name a few, there is also ROHS COMPLIANT.Part Through Hole is mounted to the part.As a result, the device runs at -55°C~125°C Operating Temperature.
TFML-105-01-S-D Features
Tiger Eye™ TFML series
TFML-105-01-S-D Applications
There are a lot of Samtec Inc.
TFML-105-01-S-D Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
