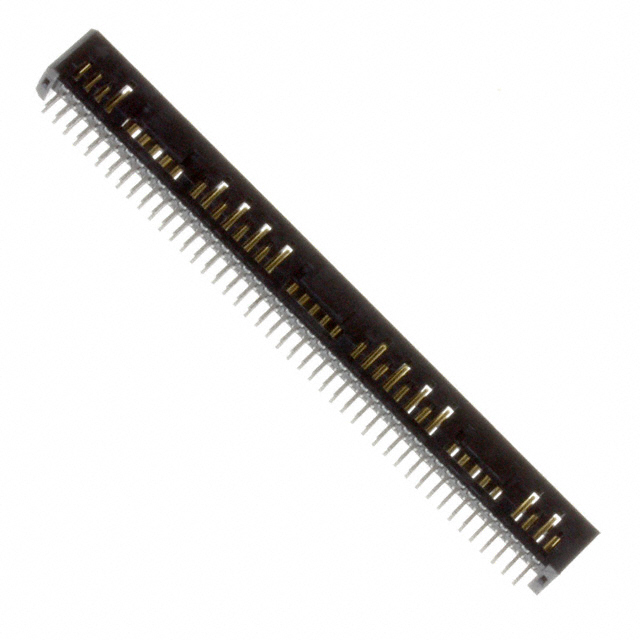

TFML-145-01-S-D

Manufacturer :

Samtec, Inc.

Product Category :

Headers, Male Pins

RoHS Status :

ROHS3 Compliant

Published :

2005

Filter Feature :

No

Lead Free :

Lead Free

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Plating Thickness :

30μin

Factory Lead Time :

3 Weeks

Style :

Board to Board or Cable

Contact Type :

Male Pin

Fastening Type :

Friction Lock

PCB Contact Pattern :

RECTANGULAR

Mounting Type :

Through Hole

Shrouding :

Shrouded - 4 Wall

Contact Finish - Mating :

Gold

MIL Conformance :

No

Mount :

Through Hole

Termination :

Solder

Insulation Height :

0.220 5.60mm

Gender :

Male

Operating Temperature :

-55°C~125°C

Number Of PCB Rows :

2

Contact Length - Mating :

0.134 3.39mm

IEC Conformance :

No

Contact Shape :

Square

Radiation Hardening :

No

Contact Finish Thickness - Mating :

30.0μin 0.76μm

Polarization Key :

POLARIZED HOUSING

Reference Standard :

UL, CSA

Number of Positions :

90

Voltage - Rated AC :

350V

Length :

60.33mm

Connector Type :

Header

Contact Material :

Phosphor Bronze

Packaging :

Tube

Pitch - Mating :

0.050 1.27mm

DIN Conformance :

No

Mating Contact Pitch :

0.05 inch

Reliability :

COMMERCIAL

Series :

Tiger Eye™ TFML

HTS Code :

8536.69.40.40

Number of Positions Loaded :

All

ECCN Code :

EAR99

Depth :

5.72mm

Max Current Rating :

5A

Material Flammability Rating :

UL94 V-0

Pbfree Code :

yes

Row Spacing - Mating :

0.050 (1.27mm)

Max Voltage Rating (AC) :

350V

Housing Color :

Black

Rated Current (Signal) :

5A

Contact Finish - Post :

Tin

Mixed Contacts :

No

Contact Length - Post :

0.075 1.91mm

Number of Rows :

2

Number of Conductors :

ONE

Insulation Material :

Liquid Crystal Polymer (LCP)

Option :

GENERAL PURPOSE

Housing Material :

Polymer

REACH SVHC :

No SVHC

JESD-609 Code :

e3

Current Rating :

5A

Voltage - Rated :

350V

Orientation :

Straight
