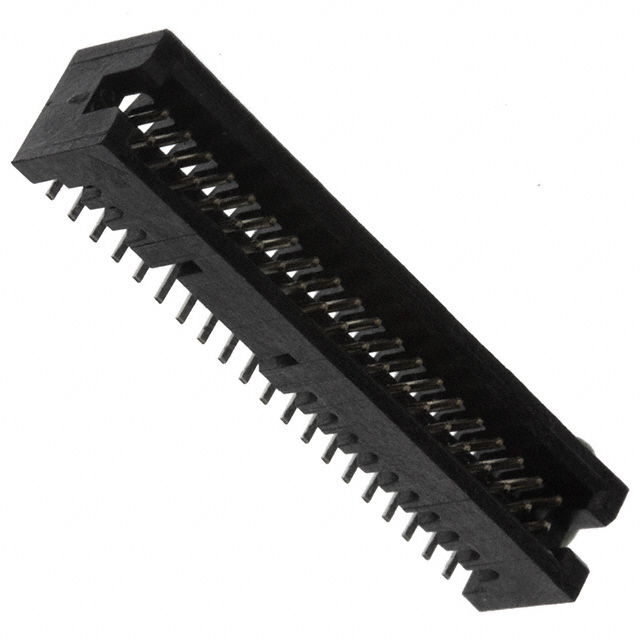

TFML-120-02-S-D
Or copy the link below:
- Mfr.Part #
- TFML-120-02-S-D
- Manufacturer
- Samtec, Inc.
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER SMD 40POS 1.27MM
- Stock
- 183
- In Stock ：
- 183
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Samtec, Inc.
- Product Category :
- Headers, Male Pins
- MIL Conformance :
- No
- Lead Free :
- Lead Free
- Contact Finish - Mating :
- Gold
- Connector Type :
- Header
- Mixed Contacts :
- No
- Gender :
- Male
- Total Number of Contacts :
- 40
- Number of Positions :
- 40
- Filter Feature :
- No
- Housing Material :
- Polymer
- Row Spacing - Mating :
- 0.050 (1.27mm)
- Contact Type :
- Male Pin
- Orientation :
- Straight
- Style :
- Board to Board or Cable
- Contact Finish - Post :
- Tin
- IEC Conformance :
- No
- Depth :
- 5.72mm
- Shrouding :
- Shrouded - 4 Wall
- Contact Material :
- Phosphor Bronze
- Insulation Resistance :
- 5000000000Ohm
- RoHS Status :
- ROHS3 Compliant
- Max Voltage Rating (AC) :
- 350V
- Packaging :
- Tube
- Number of Conductors :
- ONE
- Reference Standard :
- UL
- Rated Current (Signal) :
- 2A
- Lead Pitch :
- 1.27mm
- Option :
- GENERAL PURPOSE
- Dielectric Withstanding Voltage :
- 1000VAC V
- Current Rating :
- 5A
- Length :
- 28.58mm
- PCB Contact Pattern :
- RECTANGULAR
- Voltage - Rated :
- 350V
- Voltage - Rated AC :
- 350V
- Mating Contact Pitch :
- 0.05 inch
- Plating Thickness :
- 30μin
- Factory Lead Time :
- 3 Weeks
- Number of Positions Loaded :
- All
- Termination :
- Solder
- Mounting Type :
- Surface Mount
- Fastening Type :
- Friction Lock
- REACH SVHC :
- No SVHC
- Insulation Height :
- 0.220 5.60mm
- Pbfree Code :
- yes
- Housing Color :
- Black
- Number of Rows :
- 2
- Additional Feature :
- ELP; TIGER EYE, SHROUDED
- Mount :
- Surface Mount
- Polarization Key :
- POLARIZED HOUSING
- Pitch - Mating :
- 0.050 1.27mm
- Contact Length - Mating :
- 0.134 3.39mm
- Operating Temperature :
- -55°C~125°C
- Max Current Rating :
- 5A
- Insulation Material :
- Liquid Crystal Polymer (LCP)
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact Shape :
- Square
- Reliability :
- COMMERCIAL
- Number Of PCB Rows :
- 2
- Published :
- 2008
- JESD-609 Code :
- e3
- Series :
- Tiger Eye™ TFML
- Contact Finish Thickness - Mating :
- 30.0μin 0.76μm
- DIN Conformance :
- No
- Material Flammability Rating :
- UL94 V-0
- Datasheets
- TFML-120-02-S-D
TFML-120-02-S-D Documents
Tiger Eye™ TFML Series 2-Row Header Solder Phosphor Bronze Tube Surface Mount Gold Liquid Crystal Polymer (LCP) 40-Position Board to Board or Cable 0.220 5.60mm Height
TFML-120-02-S-D Overview
Currently, it is packaged in Header.The mounting type of the device is Surface Mount.A Tube case is used to package the product.A product of the Tiger Eye™ TFML Series, it belongs to the range of products of that series.Furthermore, there are other features available, such as ELP; TIGER EYE, SHROUDED, to name a few.Surface Mount represents the mounting point for the part.-55°C~125°C Operating Temperature is the default operating temperature for the device.
TFML-120-02-S-D Features
Tiger Eye™ TFML series
TFML-120-02-S-D Applications
There are a lot of Samtec Inc.
TFML-120-02-S-D Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
