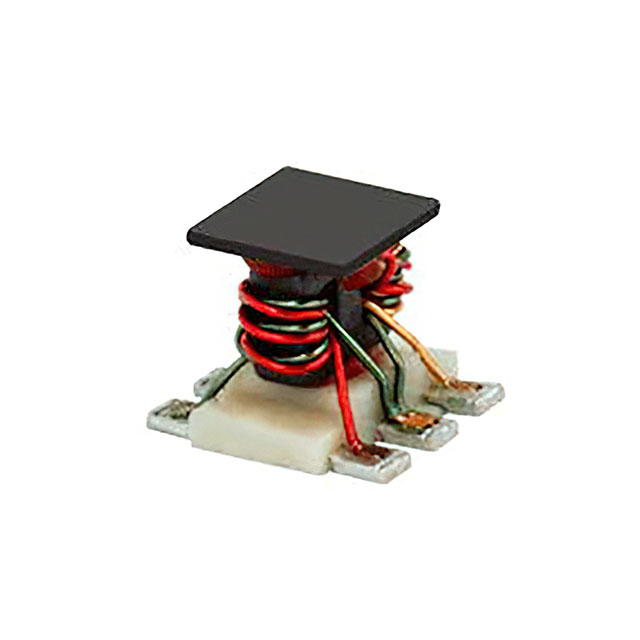

TCM1-43X+

Manufacturer :

Mini-Circuits

Product Category :

Balun

Termination Style :

SMD/SMT

Package :

Tape and Reel (TR);Cut Tape (CT);Digi-Reel®;

Product Status :

Active

Type :

SMT Transformers

Frequency Range :

10 MHz to 4000 MHz

Width :

3.81 mm

Phase Difference :

7°

Height :

4.06 mm

Product Type :

Audio and Signal Transformers

Primary Impedance :

50 Ohms

Manufacturer :

Mini-Circuits

Product :

RF

Power Rating :

0.4 W

Length :

4.06 mm

Subcategory :

Transformers

Impedance - Unbalanced/Balanced :

50 / 50Ohm

RoHS :

Details

Package / Case :

4.06 mm x 3.81 mm x 4.06 mm

Secondary Impedance :

50 Ohms

Minimum Operating Temperature :

- 40 C

Series :

TCM1

Insertion Loss (Max) :

3dB

Product Category :

Audio Transformers / Signal Transformers

Packaging :

MouseReel

Mounting Type :

Surface Mount

Brand :

Mini-Circuits

Number of Channels :

Single

Return Loss (Min) :

14.24dB

Maximum Operating Temperature :

+ 85 C
