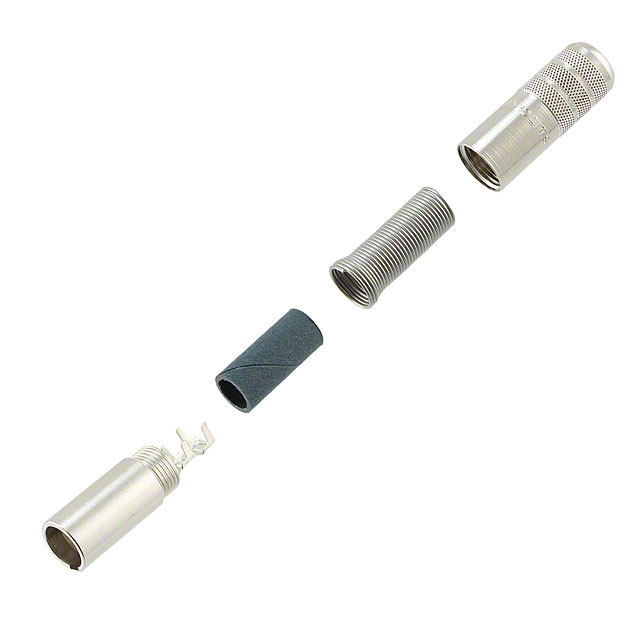

TA5MSHF
Or copy the link below:
- Mfr.Part #
- TA5MSHF
- Manufacturer
- Switchcraft / Conxall
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT MALE MINI XLR 5P SLDR
- Stock
- 63
- In Stock ：
- 63
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Switchcraft / Conxall
- Product Category :
- Circular Connector Assemblies
- Fastening Type :
- Latch Lock
- Operating Temperature :
- -55°C~85°C
- Insert Material :
- Thermoplastic
- MIL Conformance :
- No
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Shell Finish :
- Nickel
- Series :
- Tini Q-G® TA
- Number of Ports :
- 1
- Orientation :
- Keyed
- Mount :
- Free Hanging
- DIN Conformance :
- No
- Number of Poles :
- 5
- Feature :
- Backshell, Cable Clamp, Ground, Strain Relief
- Configuration :
- 1X1 VERTICAL
- Backshell Material, Plating :
- Copper Alloy, Nickel
- Factory Lead Time :
- 8 Weeks
- Contact Material :
- COPPER ALLOY
- Published :
- 2009
- Material Flammability Rating :
- UL94 V-0
- Mounting Type :
- Free Hanging (In-Line)
- IEC Conformance :
- No
- Shell Size - Insert :
- Mini XLR
- Connector Type :
- Receptacle, Male Pins
- Cable Opening :
- 0.240 (6.10mm)
- JESD-609 Code :
- e4
- Contact Finish - Mating :
- Silver
- Option :
- GENERAL PURPOSE
- Termination :
- Solder Cup
- Current Rating :
- 4A
- Applications :
- Audio, Medical
- Voltage - Rated :
- 125VAC
- Gender :
- Male
- Reach Compliance Code :
- not_compliant
- Packaging :
- Bulk
- ECCN Code :
- EAR99
- Shell Material :
- COPPER ALLOY
- Shielding :
- Shielded
- RoHS Status :
- ROHS3 Compliant
- Number of Positions :
- 5
- Datasheets
- TA5MSHF
TA5MSHF Documents
Receptacle, Male Pins Copper Alloy Free Hanging (In-Line) 5 Positions Solder Cup Silver Nickel Bulk Keyed Latch Lock
TA5MSHF Overview
It comes in Receptacle, Male Pins packaging.The device's mounting type is Free Hanging (In-Line).In order to package the product, a Bulk case is used.It belongs to the Tini Q-G® TA Series of products.Its Backshell, Cable Clamp, Ground, Strain Relief feature renders it more powerful in many ways.The part is mounted by Free Hanging.The device runs in -55°C~85°C Operating Temperature.
TA5MSHF Features
Tini Q-G® TA series
TA5MSHF Applications
There are a lot of Switchcraft Inc.
TA5MSHF Circular Connectors applications.
- Industrial Automation
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
