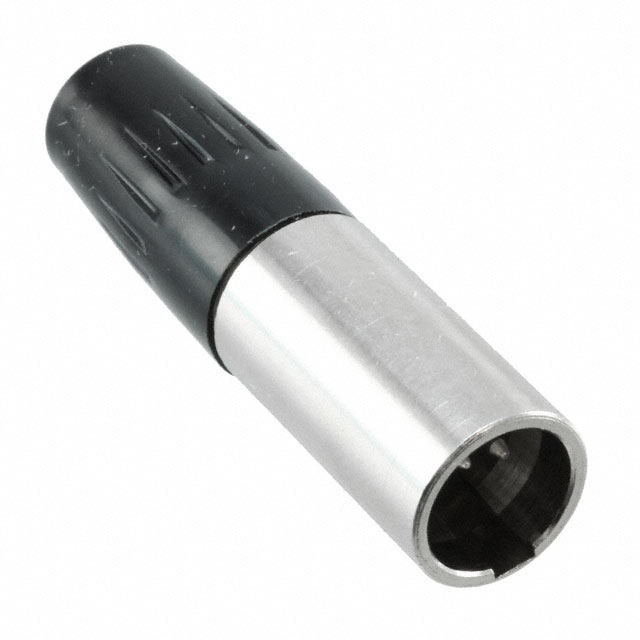

TA5MLX
Or copy the link below:
- Mfr.Part #
- TA5MLX
- Manufacturer
- Switchcraft / Conxall
- Package / Case
- Metal
- Datasheet
- Download
- Description
- CONN RCPT MALE MINI XLR 5P SLDR
- Stock
- 59
- In Stock ：
- 59
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Switchcraft / Conxall
- Product Category :
- Circular Connector Assemblies
- Insulation Material :
- Plastic
- Body Material :
- Metal
- Color :
- Black, Silver
- Length :
- 51.4mm
- Connector Type :
- Receptacle, Male Pins
- Contact Finish - Mating :
- Silver
- Current Rating (Amps) :
- 4A
- Operating Temperature :
- -55°C~85°C
- Mounting Type :
- Free Hanging (In-Line)
- Mount :
- Cable, Free Hanging
- Cable Opening :
- 0.115 ~ 0.190 (2.92mm ~ 4.83mm)
- Current Rating :
- 4A
- Gender :
- Male
- Factory Lead Time :
- 12 Weeks
- Series :
- Tini Q-G® TA-X
- Number of Positions :
- 5
- Number of Terminations :
- 5
- Contact Plating :
- Tin
- Number of Contacts :
- 5
- Feature :
- Backshell, Cable Clamp
- Packaging :
- Bulk
- Max Operating Temperature :
- 85°C
- RoHS Status :
- ROHS3 Compliant
- Backshell Material, Plating :
- Thermoplastic
- Approval Agency :
- UL
- Published :
- 2005
- Material Flammability Rating :
- UL94 V-0
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Max Voltage Rating (AC) :
- 125V
- Min Operating Temperature :
- -55°C
- Package / Case :
- Metal
- Applications :
- Audio
- Voltage - Rated :
- 125VAC
- Plating :
- Nickel
- Insert Material :
- Polyphenylene Sulfide (PPS)
- Shell Material :
- COPPER ALLOY
- Contact Material :
- COPPER ALLOY
- Number of Ports :
- 1
- Shell Size - Insert :
- Mini XLR
- Fastening Type :
- Latch Lock
- Orientation :
- Keyed
- Max Current Rating :
- 4A
- Termination :
- Solder
- Shielding :
- Shielded
- Shell Finish :
- Nickel
- Lead Free :
- Lead Free
- Datasheets
- TA5MLX
Receptacle, Male Pins Copper Alloy Free Hanging (In-Line) 5 Positions Solder Silver Nickel Bulk Keyed Latch Lock
TA5MLX Overview
Currently, it is packaged in Receptacle, Male Pins.The mounting type of the device is Free Hanging (In-Line).A Bulk case is used to package the product.A product of the Tini Q-G® TA-X Series, it belongs to the range of products of that series.A temperature below 85°C is best for using it.The device must run at -55°C degrees.Metal means there is a device enclosed in the packaging.A number of features make the Backshell, Cable Clamp feature more powerful.Cable, Free Hanging represents the mounting point for the part.-55°C~85°C Operating Temperature is the default operating temperature for the device.
TA5MLX Features
5 basic kinds of terminations
Tini Q-G® TA-X series
TA5MLX Applications
There are a lot of Switchcraft Inc.
TA5MLX Circular Connectors applications.
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
- All Electrical Machinery
- Refrigeration control
