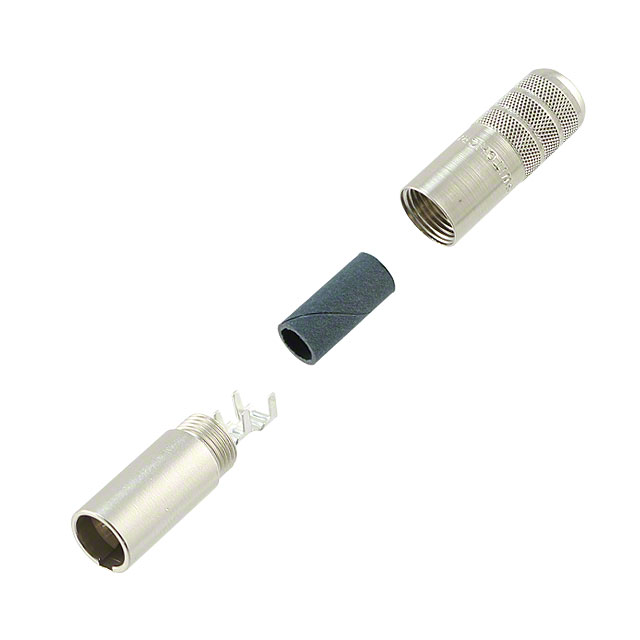

TA5MSH
Or copy the link below:
- Mfr.Part #
- TA5MSH
- Manufacturer
- Switchcraft / Conxall
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT MALE MINI XLR 5P SLDR
- Stock
- 41
- In Stock ：
- 41
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Switchcraft / Conxall
- Product Category :
- Circular Connector Assemblies
- Connector Type :
- Receptacle, Male Pins
- RoHS Status :
- ROHS3 Compliant
- Number of Positions :
- 5
- Gender :
- Male
- DIN Conformance :
- No
- ECCN Code :
- EAR99
- Contact Finish - Mating :
- Silver
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Applications :
- Audio, Medical
- Configuration :
- 1X1 VERTICAL
- Mounting Type :
- Free Hanging (In-Line)
- Feature :
- Backshell, Cable Clamp, Ground
- Number of Poles :
- 5
- Reach Compliance Code :
- not_compliant
- Termination :
- Solder Cup
- Contact Material :
- COPPER ALLOY
- Published :
- 2010
- Series :
- Tini Q-G® TA
- Insert Material :
- Thermoplastic
- Factory Lead Time :
- 12 Weeks
- Orientation :
- Keyed
- Shell Material :
- COPPER ALLOY
- Shielding :
- Shielded
- Mount :
- Free Hanging
- Number of Ports :
- 1
- IEC Conformance :
- No
- Current Rating :
- 4A
- Operating Temperature :
- -55°C~85°C
- Packaging :
- Bulk
- Voltage - Rated :
- 125VAC
- Shell Finish :
- Nickel
- Fastening Type :
- Latch Lock
- Shell Size - Insert :
- Mini XLR
- Backshell Material, Plating :
- Copper Alloy, Nickel
- JESD-609 Code :
- e4
- Option :
- GENERAL PURPOSE
- Material Flammability Rating :
- UL94 V-0
- MIL Conformance :
- No
- Cable Opening :
- 0.290 (7.37mm)
- Datasheets
- TA5MSH
TA5MSH Documents
Receptacle, Male Pins Copper Alloy Free Hanging (In-Line) 5 Positions Solder Cup Silver Nickel Bulk Keyed Latch Lock
TA5MSH Overview
Currently, it is packaged in Receptacle, Male Pins.The mounting type of the device is Free Hanging (In-Line).A Bulk case is used to package the product.A product of the Tini Q-G® TA Series, it belongs to the range of products of that series.A number of features make the Backshell, Cable Clamp, Ground feature more powerful.Free Hanging represents the mounting point for the part.-55°C~85°C Operating Temperature is the default operating temperature for the device.
TA5MSH Features
Tini Q-G® TA series
TA5MSH Applications
There are a lot of Switchcraft Inc.
TA5MSH Circular Connectors applications.
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
- All Electrical Machinery
- Refrigeration control
