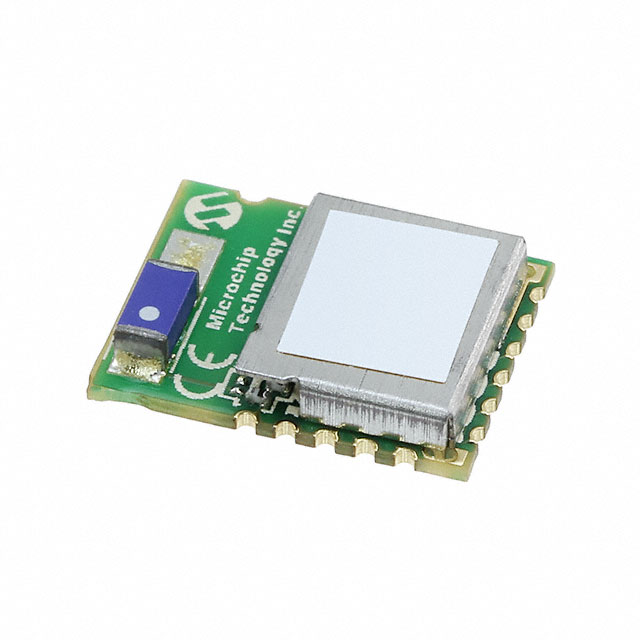

RN4871-I/RM128

Manufacturer :

Microchip Technology

Product Category :

RF Transceiver Modules and Modems

Length :

11.5mm

Supplier Package :

SMD Module

Packaging :

Tray

Published :

2018

Manufacturer :

Microchip

JESD-30 Code :

R-XXMA-N16

Serial Interfaces :

I2C, SPI, UART

Brand :

Microchip Technology / Atmel

Sensitivity :

-90dBm

Screening Level :

Industrial

Supply Voltage :

3.3V

Class :

Bluetooth Low Energy (BLE)

RoHS Status :

ROHS3 Compliant

Terminal Position :

UNSPECIFIED

Telecom IC Type :

TELECOM CIRCUIT

Number of Functions :

1

Firmware Version :

1.2.8

Package :

Tray

Maximum Data Rate :

10 kbps

RoHS :

Details

Operating Supply Voltage :

3.3 V

Operating Frequency :

2402 to 2480 MHz

Surface Mount :

No

Shielding :

Shielded

Interface Type :

UART

Number of Terminations :

16

Dimensions :

9 mm x 11.5 mm

Antenna Type :

Integrated, Chip

Current - Transmitting :

13mA

Package / Case :

Module

Factory Lead Time :

17 Weeks

Product Category :

Bluetooth Modules - 802.15.1

Memory Size :

--

Utilized IC / Part :

--

Current - Receiving :

13mA

Power - Output :

0dBm

Terminal Pitch :

1.2mm

Frequency Range :

2.402 GHz to 2.48 GHz

Modulation :

GFSK

Series :

--

Base Product Number :

RN4871

Product Status :

Active

Minimum Operating Temperature :

- 40 C

Frequency :

2.4GHz

Height Seated (Max) :

2.1mm

Moisture Sensitivity Level (MSL) :

3 (168 Hours)

Maximum Operating Temperature :

+ 85 C

Type :

Bluetooth Low Energy Module

Subcategory :

Wireless and RF Modules

Number of Channels :

40

Mounting Type :

Surface Mount

Mounting Style :

SMD/SMT

RF Family/Standard :

Bluetooth

Base Part Number :

RN4871

Terminal Form :

NO LEAD

Operating Temperature :

-40°C~85°C

Pin Count :

16

Output Power :

0 dBm

Product Type :

Bluetooth Modules

Mounting :

Surface Mount

Data Rate :

10kbps

Voltage - Supply :

1.9V~3.6V

Protocol :

Bluetooth v5.0

Width :

9mm
