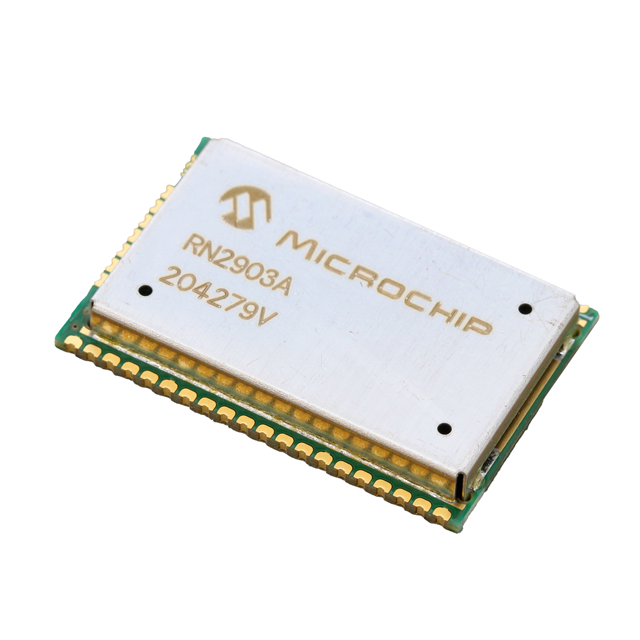

RN2903A-I/RM105
Or copy the link below:
- Mfr.Part #
- RN2903A-I/RM105
- Manufacturer
- Microchip Technology
- Package / Case
- Module
- Datasheet
- Download
- Description
- RX TXRX MOD ISM < 1GHZ CAST SMD
- Stock
- 22,590
- In Stock ：
- 22,590
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Microchip Technology
- Product Category :
- RF Transceiver Modules and Modems
- Brand :
- Microchip Technology / Atmel
- Modulation :
- FSK, GFSK
- Operating Frequency (Max) :
- 928000(kHz)
- Maximum Output Power :
- 18.5dBm
- Maximum Operating Temperature :
- + 85 C
- Operating Supply Voltage (Max) :
- 3.6(V)
- Terminal Form :
- NO LEAD
- Output Power :
- 18.5 dBm
- Operating Band Frequency :
- 902 to 928(MHz)
- Antenna Connector Type :
- PCB
- Type :
- Transceiver Module
- Terminal Position :
- UNSPECIFIED
- JESD-30 Code :
- R-XXMA-N47
- Power - Output :
- 18.5dBm
- Voltage - Supply :
- 2.1V~3.6V
- Operating Temperature Classification :
- Industrial
- RoHS Status :
- ROHS3 Compliant
- Operating Supply Voltage (Typ) :
- 3.3(V)
- Supply Current :
- 124.4mA
- Package / Case :
- Module
- RoHS :
- Details
- Product Status :
- Active
- Supply Voltage :
- 3.3V
- Length :
- 26.7mm
- Modulation Technique :
- FSK/GFSK
- Width :
- 17.8mm
- Screening Level :
- Industrial
- Interface Type :
- UART
- Antenna Type :
- Antenna Not Included, Castellation
- Protocol :
- LoRa™
- Category :
- Transceiver
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Number of Terminations :
- 47
- Serial Interfaces :
- I2C, SPI, UART
- Operating Temperature (Max) :
- 85C
- Base Product Number :
- RN2903
- Utilized IC / Part :
- -
- Product :
- LoRa/LoRaWAN
- Frequency :
- 902MHz~928MHz
- Product Height (mm) :
- 3.34(mm)
- Dimensions :
- 17.8 x 26.7 x 3.34mm
- uPs/uCs/Peripheral ICs Type :
- MICROPROCESSOR CIRCUIT
- Height Seated (Max) :
- 3.34mm
- Modulation Type :
- FSK/GFSK
- Minimum Operating Temperature :
- - 40 C
- Product Depth (mm) :
- 17.78(mm)
- Current - Transmitting :
- 42.6mA~124.4mA
- Product Category :
- Sub-GHz Modules
- Product Type :
- Sub-GHz Modules
- Subcategory :
- Wireless and RF Modules
- Factory Lead Time :
- 18 Weeks
- Data Rate :
- 300kbps
- Sensitivity :
- -146dBm
- Series :
- RN2903
- Package :
- Tray
- Terminal Pitch :
- 1.27mm
- Rad Hardened :
- No
- Operating Temperature :
- -40°C~85°C
- Manufacturer :
- Microchip
- Memory Size :
- -
- Operating Supply Voltage :
- 3.3 V
- Current - Receiving :
- -
- Packaging :
- Tray
- Product Length (mm) :
- 26.67(mm)
- Mounting :
- Surface Mount
- Operating Supply Voltage (Min) :
- 3.1V(V)
- RF Family/Standard :
- General ISM < 1GHz
- Operating Temperature (Min) :
- -40C
- Mounting Type :
- Surface Mount
- Operating Frequency :
- 902 to 928 MHz
- Surface Mount :
- yes
- Datasheets
- RN2903A-I/RM105
RN2903A-I/RM105 Documents
902MHz~928MHz General ISM < 1GHz -40°C~85°C 2.1V~3.6V I2C, SPI, UART Tray Antenna Not Included, Castellation 300kbps 18.5dBm LoRa™ -146dBm Module
RN2903A-I/RM105 Overview
RF Transceiver' mounting is done by using Surface Mount.It is designed to provide optimal performance by utilizing the Tray package.There are 47 terminations in this RF Transceiver module.-40°C~85°C should be the operating temperature when Transceiver is operating.This RF Transceiver Module belongs to the RN2903 family.It is possible for the RF Transceiver to supply voltages of 2.1V~3.6V.There is 902MHz~928MHz frequency set for the RF Transceiver Module.
RN2903A-I/RM105 Features
Surface Mount
Tray package
47 terminations
2.1V~3.6V volts
RN2903A-I/RM105 Applications
There are a lot of Microchip Technology
RN2903A-I/RM105 RF Transceiver Modules applications.
- Transmit
- Receive
- Switch
- Power management
- Internet of Things (IoT)
- Secure Payment
- Home and Security
- Health and Fitness
- Industrial and Data Logger
- LED Lighting
