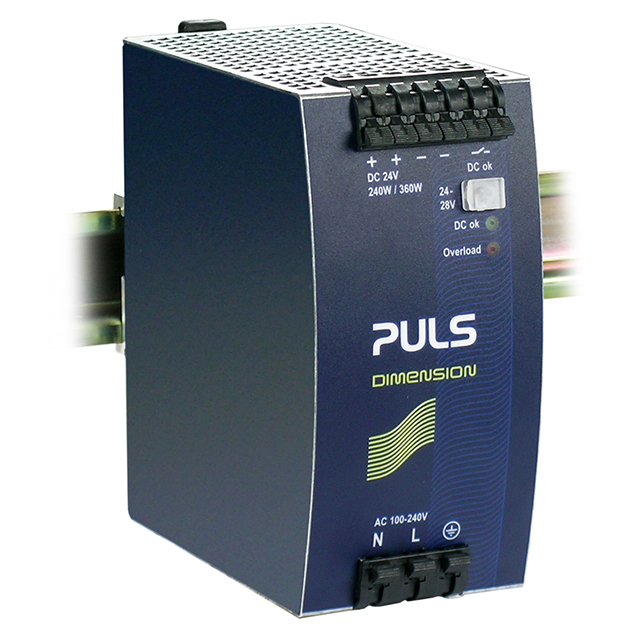

QS10.241

Manufacturer :

PULS

Product Category :

Moisture Sensitivity Level (MSL) :

Not Applicable

Max Input Voltage :

240V

Efficiency :

93.5%

Trim/Adjustable Output :

yes

Current - Output (Max) :

10A

Size / Dimension :

4.61Lx2.36W x 4.88 H 117.0mmx60.0mmx124.0mm

Output Voltage :

24V

Max Output Voltage :

28V

Time@Peak Reflow Temperature-Max (s) :

NOT SPECIFIED

Output Current :

10A

Series :

DIMENSION Q (240W)

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Power (Watts) :

240W

Number of Outputs :

1

RoHS Status :

RoHS Compliant

Package / Case :

Module

Factory Lead Time :

2 Weeks

Weight :

900g

Total Power Output-Max :

252W

Mounting Type :

DIN Rail

Number of Functions :

1

Terminal Form :

UNSPECIFIED

Type :

Enclosed

Input Voltage-Nom :

100V

Min Output Voltage :

24V

Voltage - Input :

85V~276VAC

Mount :

DIN Rail

ECCN Code :

EAR99

Applications :

ITE (Commercial)

Number of Terminations :

10

Approval Agency :

CB, cCSAus, CE, cULus, cURus

Voltage - Isolation :

500V

Terminal Position :

UNSPECIFIED

Depth :

124mm

Min Input Voltage :

100V

Feature :

Adjustable Output, Load Sharing, PFC

Operating Temperature :

0°C~70°C With Derating
