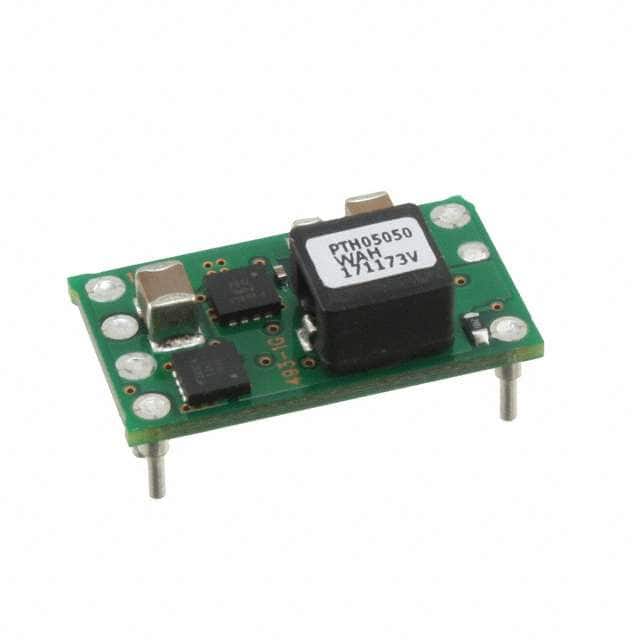

PTH05050WAD
Or copy the link below:
- Mfr.Part #
- PTH05050WAD
- Manufacturer
- Texas Instruments
- Package / Case
- 6-DIP Module
- Datasheet
- Download
- Description
- PTH05050W 6 A, 5-V INPUT NON-ISO
- Stock
- 15,738
- In Stock ：
- 15,738
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Texas Instruments
- Product Category :
- DC DC Switching Controllers
- Max Power Dissipation :
- 21.6W
- Number of Outputs :
- 1
- Mounting Type :
- Through Hole
- Factory Lead Time :
- 6 Weeks
- Package / Case :
- 6-DIP Module
- Min Input Voltage (DC) :
- 4.5V
- Pbfree Code :
- yes
- Terminal Position :
- Dual
- ECCN Code :
- EAR99
- Surface Mount :
- No
- Max Output Current :
- 6A
- Frequency :
- 600kHz
- Contact Plating :
- Tin
- Max Input Voltage (DC) :
- 5.5V
- Output Current :
- 6A
- HTS Code :
- 8504.40.85.00
- Series :
- PTH05050W
- Approval Agency :
- UL, CSA
- Output Power :
- 21.6W
- Radiation Hardening :
- No
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Packaging :
- Tray
- Applications :
- ITE (Commercial)
- Efficiency :
- 95%
- Voltage - Output 1 :
- 0.8V~3.6V
- Min Output Voltage :
- 800mV
- Isolation :
- Non-Isolated
- Number of Terminations :
- 6
- Input Voltage-Nom :
- 5V
- Number of Functions :
- 1
- RoHS Status :
- ROHS3 Compliant
- Pin Count :
- 6
- Base Part Number :
- TH05050
- Lifecycle Status :
- ACTIVE (Last Updated: 2 days ago)
- Output Voltage :
- 3.6V
- Lead Free :
- Lead Free
- Number of Pins :
- 6
- Trim/Adjustable Output :
- yes
- Control Mode :
- VOLTAGE-MODE
- Size / Dimension :
- 0.87Lx0.50W x 0.34 H 22.1mmx12.7mmx8.6mm
- Protections :
- OUTPUT OVER CURRENT
- Thickness :
- 8.25mm
- Operating Temperature :
- -40°C~85°C
- Max Output Voltage :
- 3.6V
- Current - Output 1 :
- 6A
- Additional Feature :
- REMOTE SHUTDOWN
- REACH SVHC :
- No SVHC
- Terminal Form :
- PIN/PEG
- Max Output Power :
- 21.6W
- Depth :
- 12.57mm
- Type :
- Non-Isolated PoL Module
- JESD-609 Code :
- e3
- Height :
- 8.5mm
- Datasheets
- PTH05050WAD
DC DC Switching Controllers Texas Instruments PTH05050WAD Overview
The Texas Instruments PTH05050WAD is a standout module in the realm of DC DC Switching Controllers, offering high efficiency and robust power management capabilities. Designed for demanding applications, this module provides a solid 6 A output current and operates with a 5V input. Its non-isolated design simplifies integration into a wider range of systems, making it an excellent choice for engineers looking to enhance system reliability and performance. The compact size and high functionality of the PTH05050WAD ensure that it meets the rigorous demands of modern electronic devices, appealing especially to B2B clients seeking reliable, high-volume procurement solutions.
PTH05050WAD Features
The PTH05050WAD by Texas Instruments incorporates several key features that distinguish it in the market:
- High Output Current: Capable of delivering up to 6 A, making it suitable for high-power applications.
- 5V Input Voltage: Ideal for compatibility with standard logic levels and reducing complexity in power supply design.
- Efficient Power Conversion: Ensures minimal energy loss during power conversion processes, thus improving overall system efficiency.
- Compact and Durable Design: Engineered for easy integration into existing designs without compromising on space or reliability.
- Non-Isolated Module: Facilitates simpler and faster system design with reduced need for additional components.
PTH05050WAD Applications
- Telecommunications Equipment: Used to power RF amplifiers and signal processing units, ensuring stable operation in communication infrastructures.
- Industrial Systems: Provides reliable power for sensors and actuators in automated production lines, enhancing operational efficiency and reliability.
- Computing Systems: Powers CPUs, GPUs, and memory modules in high-performance computing platforms, maintaining optimal efficiency under variable load conditions.
- Portable Devices: Supplies consistent power in portable medical and testing equipment, where stable voltage is crucial for accurate results.
- Networking Hardware: Ideal for switches, routers, and networking cards that require efficient power management to maintain high-speed data transmission.
