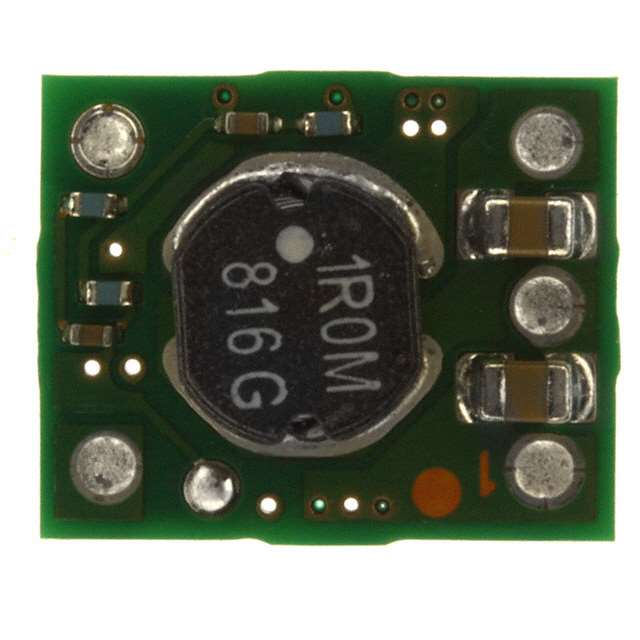

PTH04070WAZ

Share

Or copy the link below:

Mfr.Part #
PTH04070WAZ
Manufacturer
Texas Instruments
Package / Case
5-SMD Module
Datasheet
Download
Description
DC DC CONVERTER 0.9-3.6V
Stock
9,797
In Stock :
9,797

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
Texas Instruments
Product Category :
Max Output Current :
3A
Protections :
OUTPUT OVER CURRENT;THERMAL
Type :
Non-Isolated PoL Module
Max Output Voltage :
3.6V
Max Power Dissipation :
10.8W
Size / Dimension :
0.50Lx0.40W x 0.32 H 12.7mmx10.2mmx8.1mm
Pbfree Code :
yes
Number of Functions :
1
Output Current :
3A
Applications :
ITE (Commercial)
Depth :
12.57mm
Terminal Finish :
Tin/Silver/Copper (Sn/Ag/Cu)
Package / Case :
5-SMD Module
Voltage - Output 1 :
0.9V~3.6V
ECCN Code :
EAR99
Output Voltage :
3.6V
Frequency :
700kHz
Trim/Adjustable Output :
yes
Peak Reflow Temperature (Cel) :
260
Max Input Voltage (DC) :
5.5V
Min Output Voltage :
900mV
Surface Mount :
No
Min Input Voltage (DC) :
3V
Feature :
OCP, UVLO
Height :
7.81mm
Factory Lead Time :
6 Weeks
Number of Outputs :
1
Radiation Hardening :
No
Max Output Power :
10.8W
REACH SVHC :
No SVHC
Terminal Position :
Dual
Lead Free :
Lead Free
Base Part Number :
TH04070
Isolation :
Non-Isolated
Number of Terminations :
5
Number of Pins :
5
Output Power :
10.8W
Pin Count :
5
Operating Temperature :
-40°C~85°C
Mounting Type :
Surface Mount
Series :
PTH04070W
Input Voltage-Nom :
3.3V
Terminal Form :
THROUGH-HOLE
Current - Output 1 :
3A
Thickness :
7.56mm
Approval Agency :
UL, CSA
Lifecycle Status :
ACTIVE (Last Updated: 5 days ago)
Packaging :
Tray
RoHS Status :
ROHS3 Compliant
Control Mode :
VOLTAGE-MODE
Moisture Sensitivity Level (MSL) :
3 (168 Hours)
Efficiency :
92%
JESD-609 Code :
e1
Contact Plating :
Copper, Silver, Tin
Introducing Texas Instruments PTH04070WAZ from Chip IC,where excellence meets affordability. This product stands out with its Type:Non-Isolated PoL Module, Package / Case:5-SMD Module, Base Part Number:TH04070, Number of Terminations:5, Number of Pins:5, Operating Temperature:-40°C~85°C, Mounting Type:Surface Mount, PTH04070WAZ pinout, PTH04070WAZ datasheet PDF, PTH04070WAZ amp .Beyond Texas Instruments PTH04070WAZ ,we also offer F9TYP5E5EANF093, F9TYP5E5EANF094, F9TYP5E5EANF095, Our vast inventory has you covered. Contact us now for immediate solutions.
