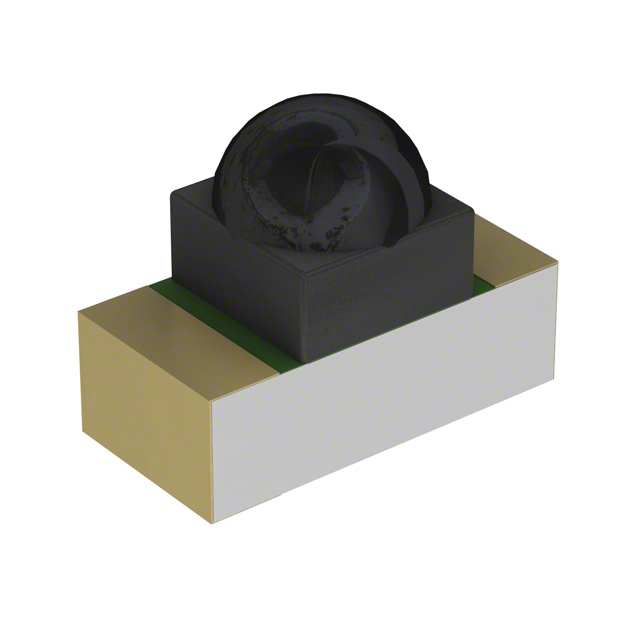

PT26-51B/TR8

Manufacturer :

Everlight Electronics

Product Category :

Optical Sensors - Phototransistors

Collector Emitter Voltage (VCEO) :

5V

Packaging :

Tape and Reel (TR)

Coll-Emtr Bkdn Voltage-Min :

60V

RoHS Status :

ROHS3 Compliant

Infrared Range :

yes

Polarity :

NPN

Number of Elements :

1

Collector Emitter Saturation Voltage :

400mV

Number of Functions :

1

Mounting Type :

Surface Mount

Case Code (Imperial) :

1206

Lens Style :

Domed

Max Breakdown Voltage :

30V

Collector Emitter Breakdown Voltage :

30V

Shape :

Round

Max Collector Current :

20mA

Configuration :

Single

Light Current-Nom :

1mA

Factory Lead Time :

20 Weeks

Optoelectronic Device Type :

PHOTO TRANSISTOR

Fall Time (Typ) :

15 µs

Case Code (Metric) :

3216

Operating Temperature :

-25°C~85°C TA

Lead Free :

Lead Free

Power Dissipation :

75mW

Lens Color :

Black

Max Power Dissipation :

75mW

Moisture Sensitivity Level (MSL) :

3 (168 Hours)

Package / Case :

1206 (3216 Metric)

Wavelength :

940nm

Rise Time :

15μs

Number of Pins :

2

Dark Current :

100nA

Orientation :

Side View

Published :

2007

Mount :

Surface Mount

Pbfree Code :

yes
