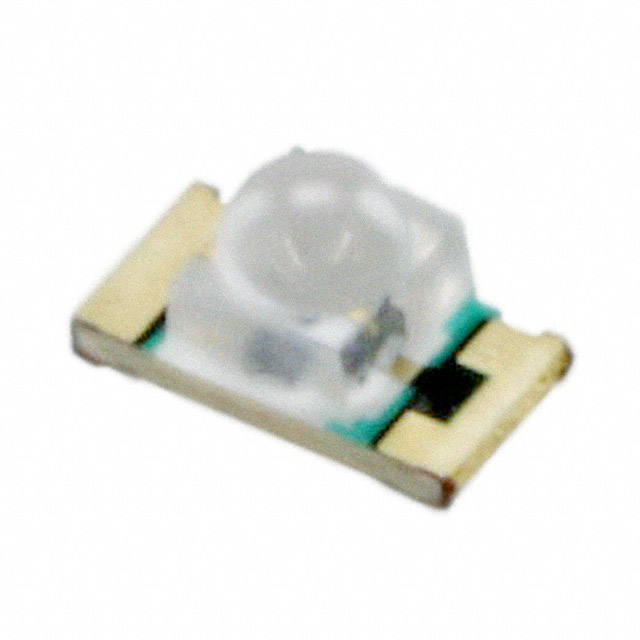

PT26-21C/TR8
Or copy the link below:
- Mfr.Part #
- PT26-21C/TR8
- Manufacturer
- Everlight Electronics
- Package / Case
- 1206 (3216 Metric)
- Datasheet
- Download
- Description
- SENSOR PHOTO 940NM TOP VIEW 1206
- Stock
- 7,071
- In Stock ：
- 7,071
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Everlight Electronics
- Product Category :
- Optical Sensors - Phototransistors
- Max Collector Current :
- 20mA
- Moisture Sensitivity Level (MSL) :
- 3 (168 Hours)
- Mount :
- Surface Mount
- Size :
- 1.6mm
- Shape :
- Round
- Pbfree Code :
- yes
- Lens Style :
- Domed
- HTS Code :
- 8541.40.70.80
- Collector Emitter Voltage (VCEO) :
- 5V
- Max Breakdown Voltage :
- 30V
- Factory Lead Time :
- 20 Weeks
- Operating Temperature :
- -25°C~85°C TA
- Optoelectronic Device Type :
- PHOTO TRANSISTOR
- Dark Current :
- 50nA
- Orientation :
- Top View
- Case Code (Imperial) :
- 1206
- Collector Emitter Breakdown Voltage :
- 30V
- Coll-Emtr Bkdn Voltage-Min :
- 60V
- Package / Case :
- 1206 (3216 Metric)
- Packaging :
- Tape and Reel (TR)
- Number of Functions :
- 1
- Lens Color :
- Clear
- Mounting Type :
- Surface Mount
- Case Code (Metric) :
- 3216
- Light Current-Nom :
- 2.6mA
- Wavelength :
- 940nm
- Configuration :
- Single
- RoHS Status :
- ROHS3 Compliant
- Infrared Range :
- yes
- Number of Pins :
- 2
- Power - Max :
- 75mW
- Max Power Dissipation :
- 75mW
- Polarity :
- NPN
- Published :
- 2005
- Datasheets
- PT26-21C/TR8
