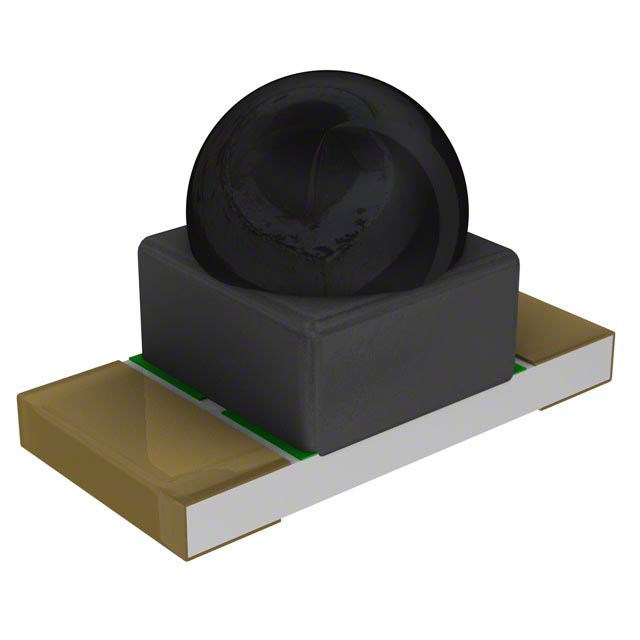

PT26-21B/TR8
Or copy the link below:
- Mfr.Part #
- PT26-21B/TR8
- Manufacturer
- Everlight Electronics
- Package / Case
- 1206 (3216 Metric)
- Datasheet
- Download
- Description
- SENSOR PHOTO 940NM TOP VIEW 1206
- Stock
- 32,296
- In Stock ：
- 32,296
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Everlight Electronics
- Product Category :
- Optical Sensors - Phototransistors
- Rise Time :
- 15μs
- Wavelength :
- 940nm
- Case Code (Imperial) :
- 1206
- Optoelectronic Device Type :
- PHOTO TRANSISTOR
- Power Dissipation :
- 75mW
- Max Breakdown Voltage :
- 30V
- Configuration :
- Single
- Mounting Type :
- Surface Mount
- Collector Emitter Breakdown Voltage :
- 30V
- Max Power Dissipation :
- 75mW
- Lead Free :
- Lead Free
- Orientation :
- Top View
- Collector Emitter Voltage (VCEO) :
- 5V
- Lens Style :
- Domed
- Number of Elements :
- 1
- Additional Feature :
- HIGH SENSITIVITY
- Number of Functions :
- 1
- Published :
- 2005
- Shape :
- Round
- Factory Lead Time :
- 20 Weeks
- Package / Case :
- 1206 (3216 Metric)
- Pbfree Code :
- yes
- Max Collector Current :
- 20mA
- Moisture Sensitivity Level (MSL) :
- 3 (168 Hours)
- Case Code (Metric) :
- 3216
- Mount :
- Surface Mount
- Operating Temperature :
- -25°C~85°C TA
- Polarity :
- NPN
- Fall Time (Typ) :
- 15 µs
- Infrared Range :
- yes
- Dark Current :
- 50nA
- Packaging :
- Tape and Reel (TR)
- RoHS Status :
- ROHS3 Compliant
- Lens Color :
- Black
- Number of Pins :
- 2
- Collector Emitter Saturation Voltage :
- 400mV
- Datasheets
- PT26-21B/TR8
PT26-21B/TR8 datasheet pdf and Optical Sensors - Phototransistors product details from Everlight Electronics Co Ltd stock available at
Features:
• High-sensitivity phototransistor with wide spectral response range from 400nm to 1100nm
• Flat black mini SMD design
• Low dark current
• High speed response
• Low power consumption
• High reliability
Applications:
• Light detection
• Light intensity measurement
• Light-activated switching
• Automotive lighting
• Industrial lighting
• Security systems
• Robotics
• Medical equipment
