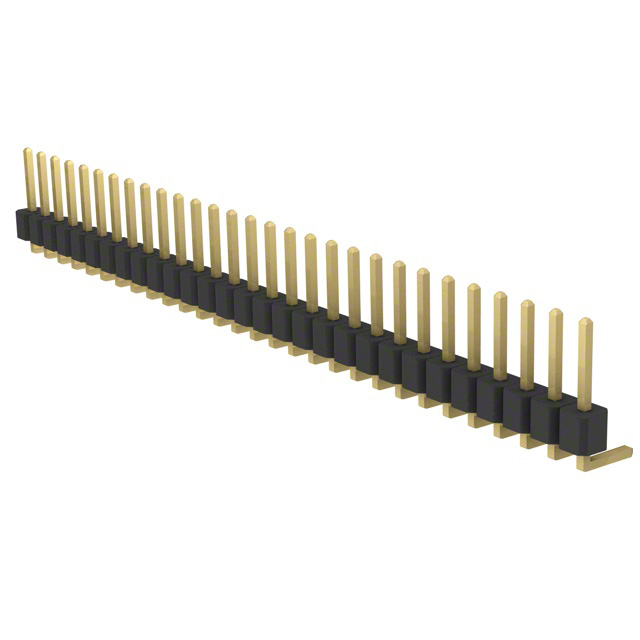

PRPC029SBAN-M71RC
Or copy the link below:
- Mfr.Part #
- PRPC029SBAN-M71RC
- Manufacturer
- Sullins Connector Solutions
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER R/A 29POS 2.54MM
- Stock
- 38,323
- In Stock ：
- 38,323
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Sullins Connector Solutions
- Product Category :
- Headers, Male Pins
- Contact Shape :
- Square
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Insulation Material :
- Polybutylene Terephthalate (PBT)
- Contact Material :
- Brass
- Terminal Pitch :
- 2.54mm
- Operating Temperature :
- -40°C~105°C
- Number of Conductors :
- ONE
- RoHS Status :
- ROHS3 Compliant
- Mount :
- Through Hole
- Body Breadth :
- 0.098 inch
- Reliability :
- COMMERCIAL
- Termination :
- Solder
- Material Flammability Rating :
- UL94 V-0
- Number of Positions Loaded :
- All
- Style :
- Board to Board or Cable
- PCB Contact Pattern :
- RECTANGULAR
- Reference Standard :
- UL
- Packaging :
- Bulk
- Contact Resistance :
- 20mOhm
- Contact Length - Post :
- 0.120 3.05mm
- Current Rating (Amps) :
- 3A per Contact
- Number of Positions :
- 29
- Mounting Type :
- Through Hole, Right Angle
- Contact Finish - Mating :
- Gold
- Insulation Height :
- 0.098 2.50mm
- Contact Finish Thickness - Mating :
- Flash
- Number of Rows :
- 1
- Fastening Type :
- Push-Pull
- Published :
- 2011
- Contact Length - Mating :
- 0.230 5.84mm
- Body Length or Diameter :
- 2.9 inch
- Insulation Color :
- Black
- Contact Type :
- Male Pin
- Number Of PCB Rows :
- 1
- Shrouding :
- Unshrouded
- Pitch - Mating :
- 0.100 2.54mm
- Connector Type :
- Header, Breakaway
- Insulation Resistance :
- 5000000000Ohm
- Datasheets
- PRPC029SBAN-M71RC
PRPC029SBAN-M71RC Documents
1-Row Header, Breakaway Solder Brass Bulk Through Hole, Right Angle Gold Polybutylene Terephthalate (PBT) 29-Position Board to Board or Cable 0.098 2.50mm Height
PRPC029SBAN-M71RC Overview
It comes in Header, Breakaway packaging.The device's mounting type is Through Hole, Right Angle.In order to package the product, a Bulk case is used.The part is mounted by Through Hole.The device runs in -40°C~105°C Operating Temperature.
PRPC029SBAN-M71RC Features
PRPC029SBAN-M71RC Applications
There are a lot of Sullins Connector Solutions
PRPC029SBAN-M71RC Rectangular Connectors applications.
- Industrial Automation
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
