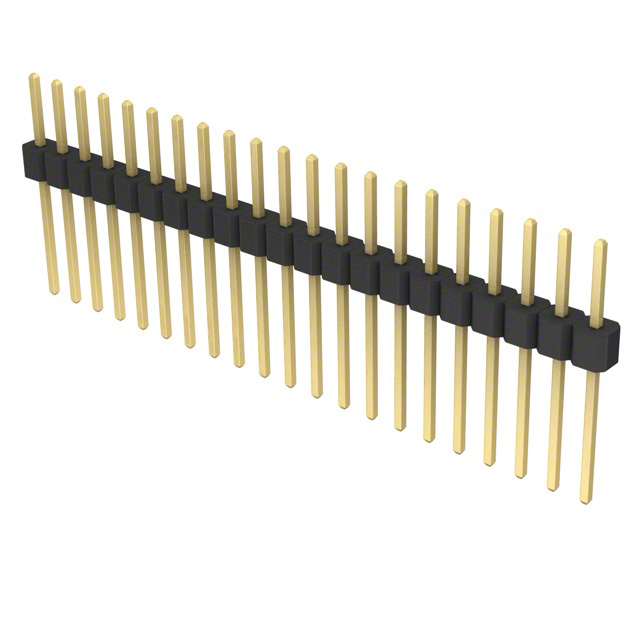

PRPC021SADN-RC
Or copy the link below:
- Mfr.Part #
- PRPC021SADN-RC
- Manufacturer
- Sullins Connector Solutions
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 21POS 2.54MM
- Stock
- 22,333
- In Stock ：
- 22,333
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Sullins Connector Solutions
- Product Category :
- Headers, Male Pins
- JESD-609 Code :
- e4
- Termination :
- Solder
- Length - Termination :
- 0.42 inch
- Number Of PCB Rows :
- 1
- Published :
- 2011
- Contact Shape :
- Square
- Pitch - Mating :
- 0.100 2.54mm
- PCB Contact Pattern :
- RECTANGULAR
- Terminal Pitch :
- 2.54mm
- Contact Type :
- Male Pin
- Contact Length - Post :
- 0.420 10.67mm
- Contact Material :
- Brass
- Mount :
- Through Hole
- Operating Temperature :
- -40°C~105°C
- Shrouding :
- Unshrouded
- Current Rating (Amps) :
- 3A per Contact
- Fastening Type :
- Push-Pull
- Number of Positions :
- 21
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Insulation Material :
- Polybutylene Terephthalate (PBT)
- Contact Length - Mating :
- 0.230 5.84mm
- Reference Standard :
- UL
- Connector Type :
- Header, Breakaway
- Number of Rows :
- 1
- Style :
- Board to Board or Cable
- Packaging :
- Bulk
- Overall Contact Length :
- 0.748 19.01mm
- Contact Finish - Mating :
- Gold
- Contact Finish Thickness - Mating :
- Flash
- Number of Positions Loaded :
- All
- Number of Conductors :
- ONE
- Material Flammability Rating :
- UL94 V-0
- Insulation Color :
- Black
- Insulation Height :
- 0.098 2.50mm
- Mounting Type :
- Through Hole
- RoHS Status :
- ROHS3 Compliant
- Reliability :
- COMMERCIAL
- Datasheets
- PRPC021SADN-RC
PRPC021SADN-RC Documents
1-Row Header, Breakaway Solder Brass Bulk Through Hole Gold Polybutylene Terephthalate (PBT) 21-Position Board to Board or Cable 0.098 2.50mm Height
PRPC021SADN-RC Overview
The packaging contains Header, Breakaway.There is a Through Hole mounting type for the device.This product is packaged in a case marked Bulk.There is a Through Hole mount on the part.This device operates at a temperature of -40°C~105°C.
PRPC021SADN-RC Features
PRPC021SADN-RC Applications
There are a lot of Sullins Connector Solutions
PRPC021SADN-RC Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
