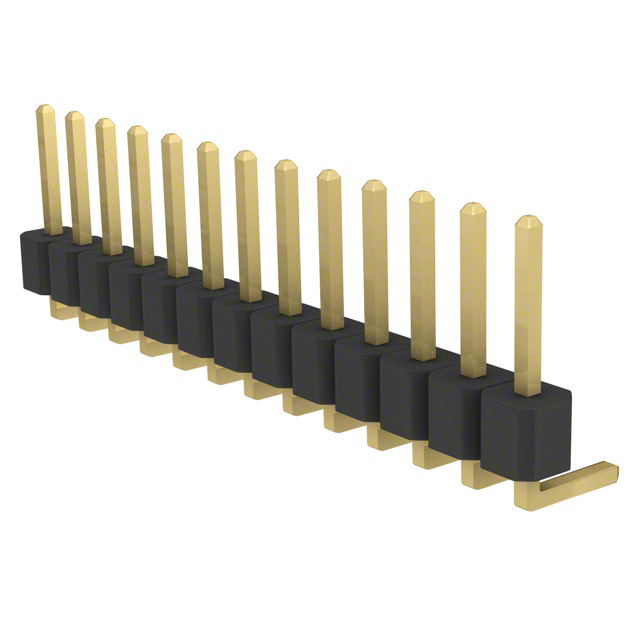

PRPC013SBAN-M71RC
Or copy the link below:
- Mfr.Part #
- PRPC013SBAN-M71RC
- Manufacturer
- Sullins Connector Solutions
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER R/A 13POS 2.54MM
- Stock
- 48,848
- In Stock ：
- 48,848
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Sullins Connector Solutions
- Product Category :
- Headers, Male Pins
- Number of Rows :
- 1
- Contact Resistance :
- 20mOhm
- Number of Conductors :
- ONE
- Pitch - Mating :
- 0.100 2.54mm
- Reference Standard :
- UL
- Number Of PCB Rows :
- 1
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Number of Positions Loaded :
- All
- Termination :
- Solder
- RoHS Status :
- ROHS3 Compliant
- Contact Material :
- Brass
- Terminal Pitch :
- 2.54mm
- Published :
- 2011
- Contact Length - Mating :
- 0.230 5.84mm
- Fastening Type :
- Push-Pull
- Style :
- Board to Board or Cable
- Insulation Material :
- Polybutylene Terephthalate (PBT)
- Mounting Type :
- Through Hole, Right Angle
- Insulation Resistance :
- 5000000000Ohm
- Reliability :
- COMMERCIAL
- Body Breadth :
- 0.098 inch
- Operating Temperature :
- -40°C~105°C
- Contact Length - Post :
- 0.120 3.05mm
- Insulation Color :
- Black
- Mount :
- Through Hole
- Material Flammability Rating :
- UL94 V-0
- PCB Contact Pattern :
- RECTANGULAR
- Contact Finish Thickness - Mating :
- Flash
- Current Rating (Amps) :
- 3A per Contact
- Contact Finish - Mating :
- Gold
- Contact Shape :
- Square
- Contact Type :
- Male Pin
- Packaging :
- Bulk
- Shrouding :
- Unshrouded
- Insulation Height :
- 0.098 2.50mm
- Connector Type :
- Header, Breakaway
- Number of Positions :
- 13
- Datasheets
- PRPC013SBAN-M71RC
PRPC013SBAN-M71RC Documents
1-Row Header, Breakaway Solder Brass Bulk Through Hole, Right Angle Gold Polybutylene Terephthalate (PBT) 13-Position Board to Board or Cable 0.098 2.50mm Height
PRPC013SBAN-M71RC Overview
Currently, it is packaged in Header, Breakaway.The mounting type of the device is Through Hole, Right Angle.A Bulk case is used to package the product.Through Hole represents the mounting point for the part.-40°C~105°C Operating Temperature is the default operating temperature for the device.
PRPC013SBAN-M71RC Features
PRPC013SBAN-M71RC Applications
There are a lot of Sullins Connector Solutions
PRPC013SBAN-M71RC Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
