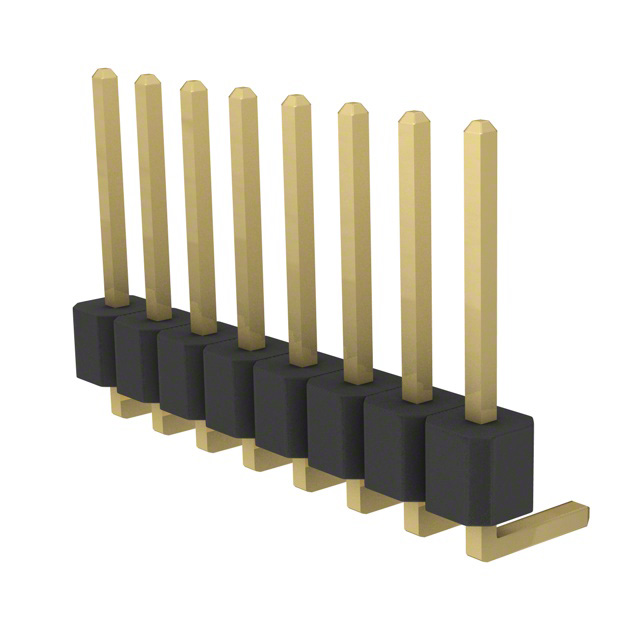

PRPC008SGAN-M71RC
Or copy the link below:
- Mfr.Part #
- PRPC008SGAN-M71RC
- Manufacturer
- Sullins Connector Solutions
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER R/A 8POS 2.54MM
- Stock
- 2,098
- In Stock ：
- 2,098
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Sullins Connector Solutions
- Product Category :
- Headers, Male Pins
- Contact Length - Mating :
- 0.318 8.08mm
- Number of Rows :
- 1
- Number of Positions Loaded :
- All
- Contact Resistance :
- 20mOhm
- Number of Positions :
- 8
- Insulation Material :
- Polybutylene Terephthalate (PBT)
- Contact Finish - Mating :
- Gold
- Packaging :
- Bulk
- Mount :
- Through Hole
- Published :
- 2011
- Connector Type :
- Header, Breakaway
- Shrouding :
- Unshrouded
- Style :
- Board to Board or Cable
- Mounting Type :
- Through Hole, Right Angle
- Terminal Pitch :
- 2.54mm
- Reference Standard :
- UL
- Contact Finish Thickness - Mating :
- Flash
- Contact Material :
- Brass
- RoHS Status :
- ROHS3 Compliant
- Material Flammability Rating :
- UL94 V-0
- Insulation Resistance :
- 5000000000Ohm
- Number of Conductors :
- ONE
- Insulation Color :
- Black
- Fastening Type :
- Push-Pull
- PCB Contact Pattern :
- RECTANGULAR
- Current Rating (Amps) :
- 3A per Contact
- Number Of PCB Rows :
- 1
- Reliability :
- COMMERCIAL
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Insulation Height :
- 0.098 2.50mm
- Pitch - Mating :
- 0.100 2.54mm
- Contact Length - Post :
- 0.120 3.05mm
- Operating Temperature :
- -40°C~105°C
- Contact Shape :
- Square
- Termination :
- Solder
- Contact Type :
- Male Pin
- Datasheets
- PRPC008SGAN-M71RC
1-Row Header, Breakaway Solder Brass Bulk Through Hole, Right Angle Gold Polybutylene Terephthalate (PBT) 8-Position Board to Board or Cable 0.098 2.50mm Height
PRPC008SGAN-M71RC Overview
The packaging contains Header, Breakaway.There is a Through Hole, Right Angle mounting type for the device.This product is packaged in a case marked Bulk.There is a Through Hole mount on the part.This device operates at a temperature of -40°C~105°C.
PRPC008SGAN-M71RC Features
PRPC008SGAN-M71RC Applications
There are a lot of Sullins Connector Solutions
PRPC008SGAN-M71RC Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
