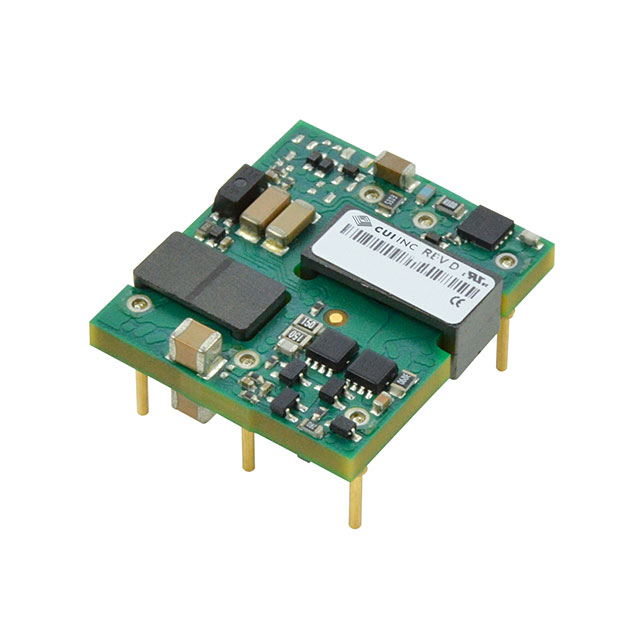

PRD25-D48-S3-N-D

Manufacturer :

Bel

Product Category :

Number of Functions :

1

Lead Free :

Lead Free

Pbfree Code :

yes

Max Output Current :

750mA

JESD-30 Code :

R-XDMA-P6

Output Voltage :

3.3V

Mount :

Through Hole

Terminal Form :

PIN/PEG

Operating Temperature :

-40°C~85°C

Trim/Adjustable Output :

yes

Number of Outputs :

1

Series :

PRD25 (25W)

Mounting Type :

Through Hole

Moisture Sensitivity Level (MSL) :

Not Applicable

Terminal Position :

Dual

Published :

2016

Width :

24.4mm

Voltage - Output 1 :

3.3V

Current - Output (Max) :

7.5A

Applications :

ITE (Commercial)

Height :

8.382mm

Size / Dimension :

1.10Lx0.96W x 0.33 H 27.9mmx24.4mmx8.4mm

Control Features :

Enable, Active Low

Length :

27.9mm

Input Voltage-Nom :

48V

Voltage - Input (Max) :

75V

Number of Terminations :

6

Voltage - Input (Min) :

36V

Packaging :

Box

Factory Lead Time :

19 Weeks

Feature :

Remote On/Off, OCP, OTP, OVP, SCP, UVLO

Max Power Dissipation :

25W

Efficiency :

89.5%

Package / Case :

6-DIP Module

Type :

Isolated Module

Voltage - Isolation :

2.25kV

RoHS Status :

RoHS Compliant
