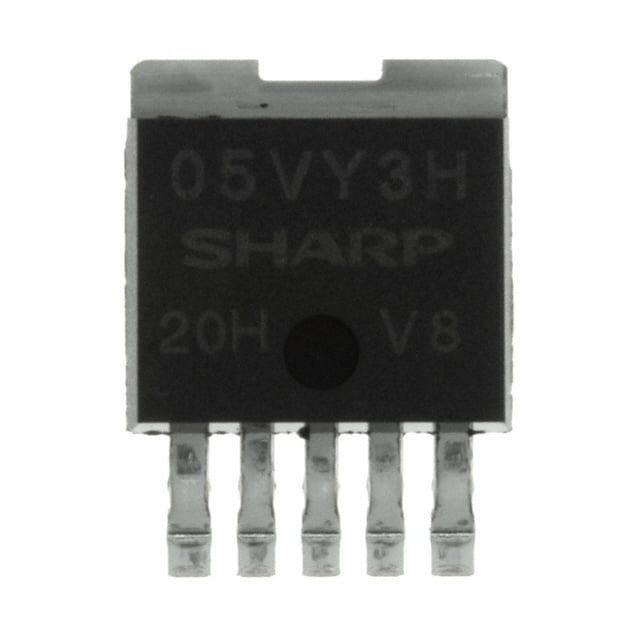

PQ05VY3H3ZPH

Manufacturer :

Sharp Microelectronics

Product Category :

Voltage Regulators - Linear

Number of Outputs :

1

Protection Features :

Over Current, Over Temperature

Factory Lead Time :

17 Weeks

PSRR :

70dB (120Hz)

Max Input Voltage :

7V

Current - Output :

3.5A

Output Configuration :

Positive

Supplier Device Package :

TO-263

Published :

2001

Voltage Dropout (Max) :

0.5V @ 3.5A

Current - Quiescent (Iq) :

10mA

RoHS Status :

RoHS Compliant

Output Voltage :

5V

Max Output Current :

3.5A

Mount :

Surface Mount

Package / Case :

TO-263-6, D2Pak (5 Leads + Tab), TO-263BA

Max Operating Temperature :

80°C

Mounting Type :

Surface Mount

Operating Temperature :

-20°C~80°C

Input Bias Current :

5mA

Voltage - Input (Max) :

7V

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Min Operating Temperature :

-20°C

Number of Regulators :

1

Polarity :

Positive

Output Type :

Adjustable

Packaging :

Tape and Reel (TR)

Voltage - Output (Max) :

5V

Reference Voltage :

1.252V

Dropout Voltage :

500mV

Min Input Voltage :

2.35V

Radiation Hardening :

No

Accuracy :

1 %

Voltage - Output (Min/Fixed) :

1.5V

Quiescent Current :

10mA

Control Features :

Enable

Number of Pins :

6

Max Power Dissipation :

35W
