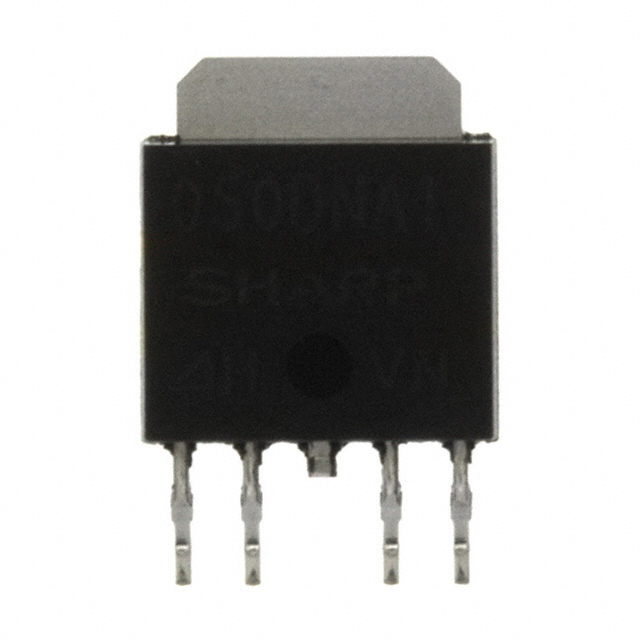

PQ050DNA1ZPH
Or copy the link below:
- Mfr.Part #
- PQ050DNA1ZPH
- Manufacturer
- Sharp Microelectronics
- Package / Case
- TO-252-5, DPak (4 Leads + Tab), TO-252AD
- Datasheet
- Download
- Description
- IC REG LINEAR 5V 1A SC63
- Stock
- 57,972
- In Stock ：
- 57,972
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Sharp Microelectronics
- Product Category :
- Voltage Regulators - Linear
- PSRR :
- 60dB (120Hz)
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Output Type :
- FIXED
- Input Bias Current :
- 4mA
- Mount :
- Surface Mount
- Voltage - Input (Max) :
- 24V
- Mounting Type :
- Surface Mount
- Output Configuration :
- Positive
- Lead Free :
- Lead Free
- Max Output Current :
- 1A
- Min Operating Temperature :
- -40°C
- Package / Case :
- TO-252-5, DPak (4 Leads + Tab), TO-252AD
- Number of Regulators :
- 1
- Operating Temperature :
- -40°C~85°C
- Output Voltage :
- 5V
- Protection Features :
- Over Current, Over Temperature
- Max Input Voltage :
- 24V
- Dropout Voltage :
- 200mV
- Voltage - Output (Min/Fixed) :
- 5V
- Number of Outputs :
- 1
- Radiation Hardening :
- No
- Power Dissipation :
- 8W
- Voltage Dropout (Max) :
- 0.5V @ 500mA
- Max Power Dissipation :
- 8W
- RoHS Status :
- RoHS Compliant
- Number of Pins :
- 63
- Polarity :
- Positive
- Current - Quiescent (Iq) :
- 8mA
- Current - Output :
- 1A
- Max Operating Temperature :
- 85°C
- Published :
- 1999
- Supplier Device Package :
- SC-63
- Packaging :
- Tape and Reel (TR)
- Control Features :
- Enable
- Datasheets
- PQ050DNA1ZPH
Voltage Regulators - Linear Sharp Microelectronics PQ050DNA1ZPH Overview
This Voltage Regulator, PQ050DNA1ZPH, manufactured by Sharp Microelectronics, is a vital component designed to ensure stable voltage output in various electronic applications. With its compact SC63 package and efficient linear regulation mechanism, it provides a reliable 5V output at up to 1A current. This product is engineered to meet stringent industry standards, making it an ideal choice for demanding industrial and commercial applications.
PQ050DNA1ZPH Features
- Stable 5V Output: Ensures consistent voltage supply for electronic devices.
- High Current Capacity: Capable of delivering up to 1A of current.
- Compact SC63 Package: Space-saving design suitable for various PCB layouts.
- Efficient Linear Regulation: Minimizes voltage fluctuations and ripple.
- Wide Application Range: Suitable for industrial, commercial, and automotive electronics.
- Reliable Performance: Manufactured by Sharp Microelectronics, a trusted name in the industry.
PQ050DNA1ZPH Applications
- Industrial Automation: This voltage regulator is essential for powering control systems, sensors, and actuators in manufacturing plants and industrial machinery.
- Telecommunications Equipment: It can be used in telecom infrastructure such as base stations, routers, and switches to maintain stable voltage levels, ensuring reliable communication networks.
- Consumer Electronics: From household appliances to audio/video equipment, this regulator can be integrated into various consumer devices to provide consistent power supply, enhancing overall performance and longevity.
