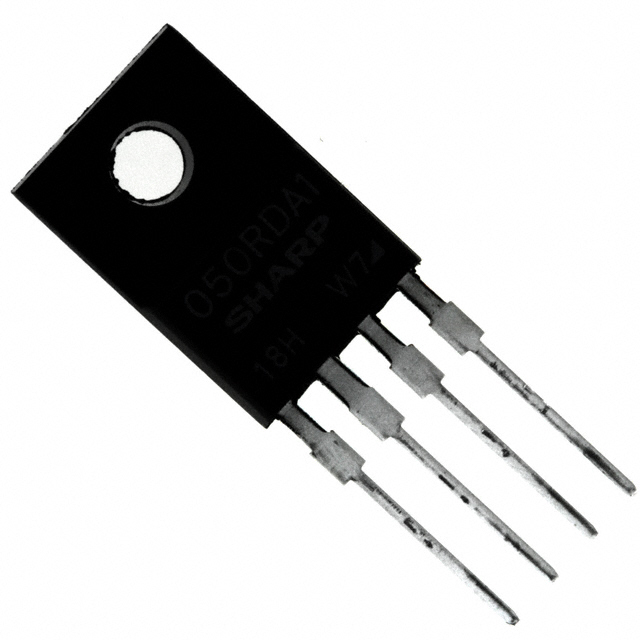

PQ050RDA1SZH

Manufacturer :

Sharp Microelectronics

Product Category :

Voltage Regulators - Linear

Supplier Device Package :

TO-220-4

Voltage - Output (Min/Fixed) :

5V

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Output Type :

FIXED

Voltage - Input (Max) :

24V

Protection Features :

Over Current, Over Temperature

Published :

2006

Current - Quiescent (Iq) :

8mA

Number of Outputs :

1

Output Configuration :

Positive

Polarity :

Positive

Dropout Voltage :

500mV

Output Voltage Accuracy :

3 %

Control Features :

Enable

Max Input Voltage :

24V

Quiescent Current :

8mA

PSRR :

55dB (120Hz)

Max Operating Temperature :

85°C

Lead Free :

Lead Free

Output Voltage :

5V

Number of Regulators :

1

RoHS Status :

RoHS Compliant

Operating Temperature :

-30°C~85°C

Mounting Type :

Through Hole

Min Input Voltage :

4.5V

Package / Case :

TO-220-4

Packaging :

Tube

Current - Output :

1A

Mount :

Through Hole

Min Operating Temperature :

-30°C

Voltage Dropout (Max) :

0.5V @ 500mA
