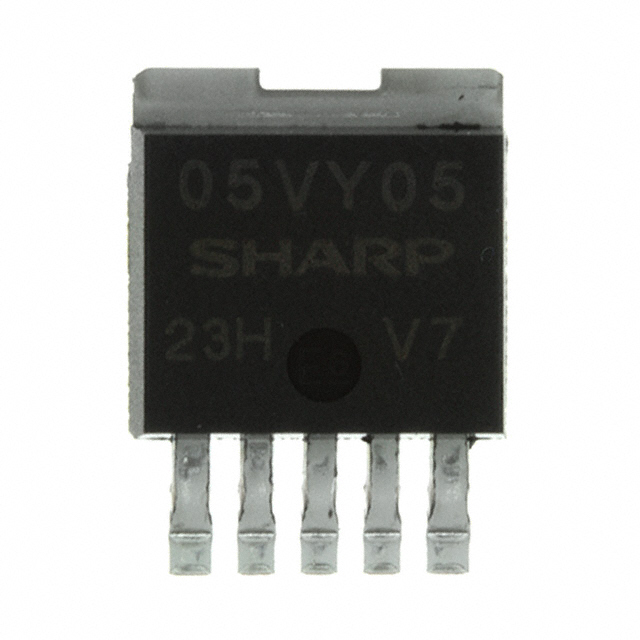

PQ05VY053ZPH

Manufacturer :

Sharp Microelectronics

Product Category :

Voltage Regulators - Linear

Mount :

Surface Mount

Output Type :

Adjustable

Voltage - Input (Max) :

7V

Mounting Type :

Surface Mount

Operating Temperature :

-20°C~80°C

Number of Functions :

1

Packaging :

Tape and Reel (TR)

Control Features :

Enable

Terminal Finish :

TIN COPPER

Width :

8.4mm

Qualification Status :

Not Qualified

Current - Quiescent (Iq) :

10mA

Voltage Dropout (Max) :

0.5V @ 5A

Current - Output :

5A

JESD-30 Code :

R-PSSO-G5

Time@Peak Reflow Temperature-Max (s) :

10

RoHS Status :

RoHS Compliant

Max Power Dissipation :

35W

Number of Terminations :

5

Min Input Voltage :

2.35V

Reference Voltage :

1.252V

Output Voltage :

5V

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Height Seated (Max) :

4.25mm

Terminal Position :

Single

Voltage - Output (Min/Fixed) :

1.5V

Terminal Form :

Gull wing

Published :

2001

Protection Features :

Over Current, Over Temperature

Output Configuration :

Positive

JESD-609 Code :

e2

Peak Reflow Temperature (Cel) :

260

PSRR :

70dB (120Hz)

Reach Compliance Code :

Unknown

Package / Case :

TO-263-6, D2Pak (5 Leads + Tab), TO-263BA

Dropout Voltage :

500mV

Number of Regulators :

1

Input Bias Current :

5mA
