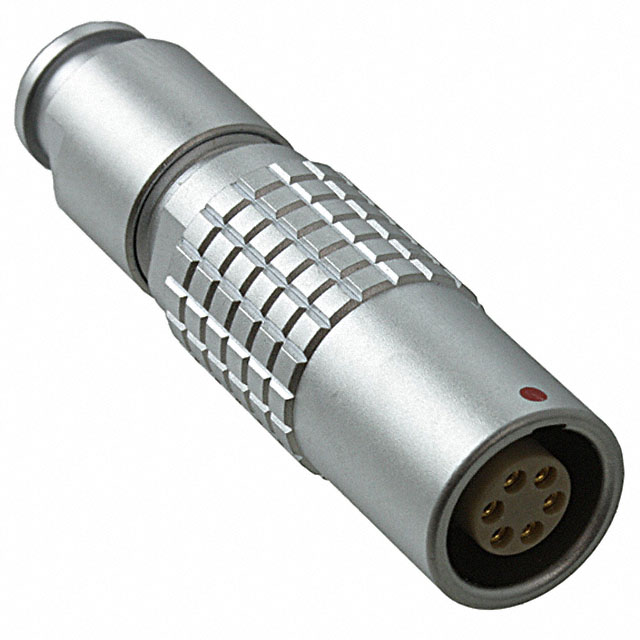

PHG.1B.306.CLLD62Z
Or copy the link below:
- Mfr.Part #
- PHG.1B.306.CLLD62Z
- Manufacturer
- LEMO
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT FMALE 6P GOLD SLDR CUP
- Stock
- 9
- In Stock ：
- 9
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- LEMO
- Product Category :
- Circular Connector Assemblies
- REACH SVHC :
- No SVHC
- Contact Gender :
- FEMALE
- Termination :
- Solder Cup
- Ratings :
- IP50
- RoHS Status :
- ROHS3 Compliant
- Contact Finish Thickness - Mating :
- 59.0μin 1.50μm
- Shielding :
- Shielded
- Diameter :
- 12.5mm
- Contact Material :
- Bronze
- ECCN Code :
- EAR99
- Feature :
- Backshell
- Cable Opening :
- 0.205 ~ 0.244 (5.20mm ~ 6.20mm)
- Packaging :
- Bulk
- Shell Finish :
- Chrome
- Pbfree Code :
- yes
- Fastening Type :
- Push-Pull
- Material :
- Brass
- Length :
- 39.5mm
- Gender :
- Receptacle
- Orientation :
- G
- Insert Material :
- Polyetheretherketone (PEEK)
- Number of Positions :
- 6
- Backshell Material, Plating :
- Brass, Chrome
- Voltage - Rated AC :
- 460V
- Operating Temperature :
- -55°C~250°C
- Mounting Type :
- Free Hanging (In-Line)
- Mount :
- Cable, Free Hanging
- Material Flammability Rating :
- UL94 V-0
- Contact Resistance :
- 5.6MOhm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Current Rating :
- 7A
- Shell Size - Insert :
- 306
- Contact Style :
- Socket
- Color :
- Silver
- Ingress Protection :
- IP50 - Dust Protected
- Series :
- 1b
- Contact Finish - Mating :
- Gold
- Connector Type :
- Receptacle, Female Sockets
- Datasheets
- PHG.1B.306.CLLD62Z
Receptacle, Female Sockets Free Hanging (In-Line) 6 Positions Solder Cup Gold Chrome Bulk G Push-Pull
PHG.1B.306.CLLD62Z Overview
Packaging is Receptacle, Female Sockets.Free Hanging (In-Line) is the mounting type.Packaging for the product is carried out via a Bulk case.As a product of the 1B Series, it can be found in this category.With its Backshell feature, it is more powerful in many ways.In this case, Cable, Free Hanging mounts the part.The device is operating at -55°C~250°C Operating Temperature.
PHG.1B.306.CLLD62Z Features
1B series
PHG.1B.306.CLLD62Z Applications
There are a lot of LEMO
PHG.1B.306.CLLD62Z Circular Connectors applications.
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
