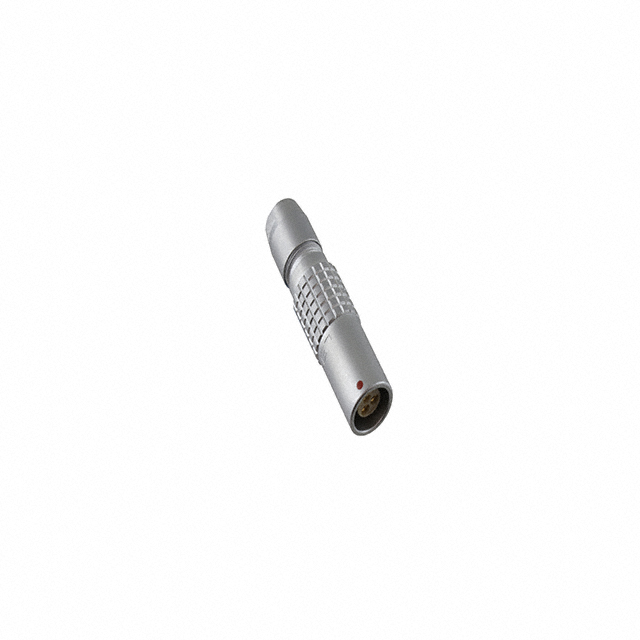

PHG.0B.303.CLLD52
Or copy the link below:
- Mfr.Part #
- PHG.0B.303.CLLD52
- Manufacturer
- LEMO
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT FMALE 3P GOLD SLDR CUP
- Stock
- 44
- In Stock ：
- 44
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- LEMO
- Product Category :
- Circular Connector Assemblies
- Filter Feature :
- No
- Mounting Type :
- Free Hanging (In-Line)
- Contact Gender :
- FEMALE
- Feature :
- Backshell
- Ratings :
- IP50
- Current Rating :
- 8A
- Backshell Material, Plating :
- Brass, Chrome
- Contact Style :
- Socket
- Length :
- 34.5mm
- Orientation :
- G
- RoHS Status :
- ROHS3 Compliant
- Connector Type :
- Receptacle, Female Sockets
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Cable Opening :
- 0.165 ~ 0.205 (4.20mm ~ 5.20mm)
- ECCN Code :
- EAR99
- Coupling Type :
- Snap
- Shell Finish :
- Chrome
- Shielding :
- Shielded
- Packaging :
- Bulk
- MIL Conformance :
- No
- Fastening Type :
- Push-Pull
- Operating Temperature :
- -55°C~250°C
- Mount :
- Cable, Free Hanging
- Shell Size - Insert :
- 303
- Contact Finish Thickness - Mating :
- 59.0μin 1.50μm
- Factory Lead Time :
- 12 Weeks
- IEC Conformance :
- No
- Material Flammability Rating :
- UL94 V-0
- Insert Material :
- Polyetheretherketone (PEEK)
- Wire/Cable Gauge :
- 22 AWG
- DIN Conformance :
- No
- Color :
- Silver
- Contact Material :
- Bronze
- Number of Positions :
- 3
- Termination :
- Solder Cup
- Diameter :
- 9.5mm
- Contact Finish - Mating :
- Gold
- Shell Material :
- Brass
- Ingress Protection :
- IP50 - Dust Protected
- Series :
- 0B
- Datasheets
- PHG.0B.303.CLLD52
PHG.0B.303.CLLD52 Documents
Receptacle, Female Sockets Brass Free Hanging (In-Line) 3 Positions Solder Cup Gold Chrome Bulk G Push-Pull
PHG.0B.303.CLLD52 Overview
You'll get Receptacle, Female Sockets packages.A Free Hanging (In-Line) mounting type is specified for the device.A Bulk case is used for packaging.The product belongs to the 0B Series.A number of aspects of its Backshell feature make it more powerful.By Cable, Free Hanging it's mounted.In this case, the device runs at -55°C~250°C Operating Temperature.
PHG.0B.303.CLLD52 Features
0B series
PHG.0B.303.CLLD52 Applications
There are a lot of LEMO
PHG.0B.303.CLLD52 Circular Connectors applications.
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
- All Electrical Machinery
