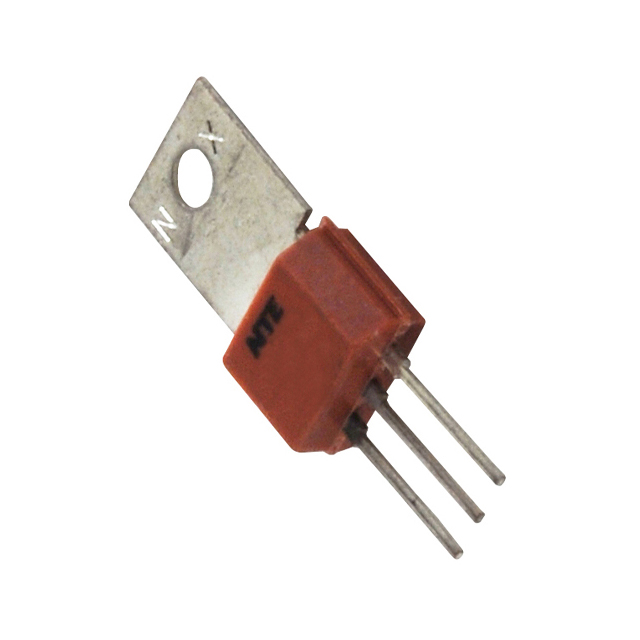

NTE186

Manufacturer :

NTE Electronics, Inc.

Product Category :

Transistors - Bipolar (BJT) - Single

Surface Mount :

No

Emitter-Base Voltage :

5(V)

Reach Compliance Code :

Unknown

HTS Code :

8541.29.00.75

Qualification Status :

Not Qualified

Pin Count :

3 +Tab

Manufacturer :

NTE Electronics

Package / Case :

TO-202 Long Tab

Category :

Bipolar Power

ECCN Code :

EAR99

Package Shape :

RECTANGULAR

Current - Collector (Ic) (Max) :

3 A

Output Power :

Not Required(W)

Collector Current-Max (IC) :

3 A

Power Dissipation :

2.1(W)

Number of Terminals :

3

Transistor Type :

NPN

Transistor Polarity :

NPN

Transistor Application :

SWITCHING

Current - Collector Cutoff (Max) :

10μA

JESD-30 Code :

R-PSFM-T3

Supplier Device Package :

TO-202

Collector Current (DC) :

3(A)

Configuration :

Single

Frequency :

50(MHz)

DC Current Gain (hFE) (Min) @ Ic, Vce :

100 @ 200mA, 1V

Product Status :

Active

Case Connection :

COLLECTOR

Transistor Element Material :

SILICON

Terminal Position :

Single

Collector-Emitter Voltage-Max :

60 V

Vce Saturation (Max) @ Ib, Ic :

500mV @ 50mA, 1A

JEDEC-95 Code :

TO-202

Number of Elements :

1

DC Current Gain-Min (hFE) :

20

Operating Temp Range :

-55C to 150C

Operating Temperature Classification :

Military

Rad Hardened :

No

Power - Max :

2.1 W

Subcategory :

Other Transistors

Terminal Form :

THROUGH-HOLE

Series :

-

Polarity/Channel Type :

NPN

Power Dissipation Ambient-Max :

12.5 W

Operating Temperature :

-55°C ~ 150°C (TJ)

Mounting Type :

Through Hole

Power Dissipation-Max (Abs) :

12 W

Mounting :

Through Hole

Voltage - Collector Emitter Breakdown (Max) :

60 V

Package :

Bag

Frequency - Transition :

50MHz

Package Type :

TO-202
