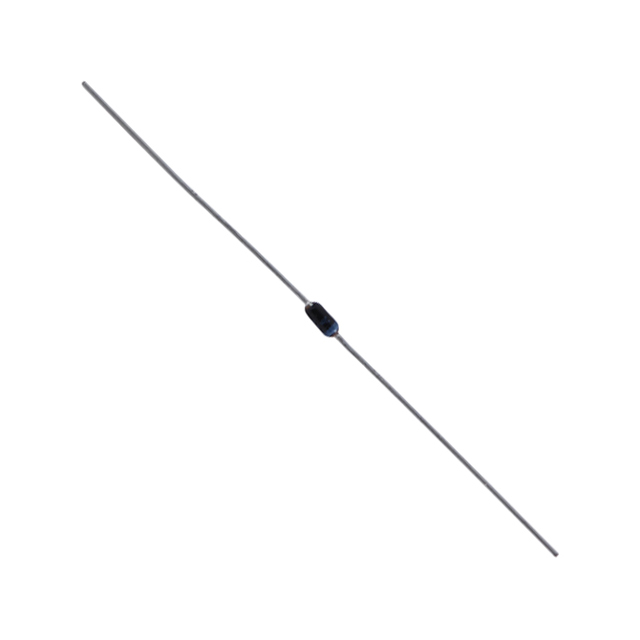

NTE177

Manufacturer :

NTE Electronics, Inc.

Product Category :

Diodes - Rectifiers - Single

ECCN Code :

EAR99

Series :

-

Rectifier Type :

Switching Diode

Surface Mount :

No

Terminal Position :

Axial

Rad Hardened :

No

Product Status :

Active

Package :

Bag

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Mounting :

Through Hole

Manufacturer :

NTE Electronics

Power Dissipation (Max) :

400(mW)

Current - Reverse Leakage @ Vr :

100 nA @ 150 V

Forward Voltage :

1.25(V)

Peak Non-Repetitive Surge Current :

5(A)

JEDEC-95 Code :

DO-35

Maximum Forward Current :

250(mA)

Reach Compliance Code :

Unknown

Mounting Type :

Through Hole

Number of Terminals :

2

Supplier Device Package :

DO-35

Package Shape :

Round

Capacitance @ Vr, F :

1.5pF @ 0V, 1MHz

Forward Current :

250(mA)

Rep Pk Reverse Voltage-Max :

200 V

Current - Average Rectified (Io) :

250mA

Voltage - DC Reverse (Vr) (Max) :

200 V

Operating Temperature - Junction :

175°C (Max)

Operating Temp Range :

-65C to 175C

Package Type :

DO-35

Reverse Recovery Time (trr) :

50 ns

Peak Forward Voltage :

1.25(V)

Operating Temperature Classification :

Military

Pin Count :

2

Subcategory :

Rectifier Diodes

Qualification Status :

Not Qualified

JESD-30 Code :

O-LALF-W2

Configuration :

Single

Package / Case :

DO-204AH, DO-35, Axial

Case Connection :

Isolated

Diode Type :

Standard

Terminal Form :

Wire

Peak Rep Rev Volt :

200(V)

Peak Reverse Current :

0.1(uA)

Reverse Recovery Time-Max :

0.05 μs

Diode Element Material :

SILICON

Rev Curr :

0.1(uA)

Voltage - Forward (Vf) (Max) @ If :

1.25 V @ 200 mA

Number of Elements :

1

Output Current-Max :

0.16 A

Speed :

Fast Recovery =< 500ns, > 200mA (Io)
