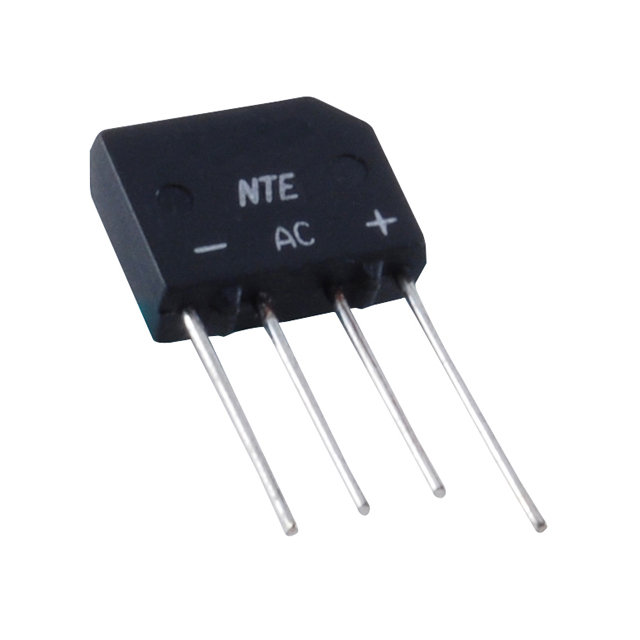

NTE170

Manufacturer :

NTE Electronics, Inc.

Product Category :

Diodes - Bridge Rectifiers

RoHS Status :

RoHS Compliant

Rev Curr :

10(mA)

Package Height :

11.18

Qualification Status :

Not Qualified

Diode Type :

Single Phase

Bridge Type :

Single Phase

Operating Temperature :

-55°C ~ 150°C (TJ)

HTS Code :

8541.10.00.80

RMS Voltage (Max) :

700(V)

Diode Element Material :

SILICON

Peak Non-Repetitive Forward Surge Current (A) :

60

Peak Reverse Repetitive Voltage (V) :

1000

Rad Hardened :

No

Reach Compliance Code :

Unknown

Subcategory :

Bridge Rectifier Diodes

Configuration :

Single

Peak Forward Voltage (V) :

1.1

Maximum Operating Temperature (°C) :

165

Peak Average Forward Current (A) :

2@Ta=50C

PCB changed :

4

Minimum Operating Temperature (°C) :

-55

Rep Pk Reverse Voltage-Max :

1000 V

Avg. Forward Curr (Max) :

2(A)

Manufacturer :

NTE Electronics Inc

ECCN (US) :

EAR99

Peak Reverse Current (uA) :

10

Peak Non-Repetitive Surge Current (Max) :

60(A)

Package Width :

4.83

Peak RMS Reverse Voltage (V) :

700

Operating Temp Range :

-55C to 165C

Operating Temperature Classification :

Military

Current - Average Rectified (Io) :

2 A

Military :

No

Voltage - Peak Reverse (Max) :

1 kV

Package :

Bag

Package / Case :

4-SIP

Terminal Position :

Single

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Number of Elements :

1

Output Current-Max :

2 A

Number of Terminals :

4

Current - Reverse Leakage @ Vr :

10 µA @ 1000 V

Forward Voltage :

1.1(V)

Peak Rep Rev Volt :

1000(V)

Voltage - Forward (Vf) (Max) @ If :

1.1 V @ 2 A

Number of Phases :

1

Mounting :

Through Hole

Technology :

Standard

AEC Qualified :

No

Package Shape :

RECTANGULAR

Supplier Device Package :

4-SIP

Series :

-

Product Status :

Active

HTS :

8541.10.00.80

Pin Count :

4

Terminal Form :

Wire

Package Length :

14.73

Surface Mount :

No

Phase Type :

Single Phase

JESD-30 Code :

R-PSIP-W4

Non-rep Pk Forward Current-Max :

50 A

Mounting Type :

Through Hole
