NTE169

Share

Or copy the link below:

Mfr.Part #
NTE169
Manufacturer
NTE Electronics, Inc.
Package / Case
4-SIP
Datasheet
Download
Description
R-SI BRIDGE 600V 2A
Stock
3,401
In Stock :
3,401

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
NTE Electronics, Inc.
Product Category :
Diodes - Bridge Rectifiers
Rad Hardened :
No
Operating Temperature Classification :
Military
Package Height :
11.18
Number of Elements :
1
Minimum Operating Temperature (°C) :
-55
Package / Case :
4-SIP
Rev Curr :
10(mA)
Supplier Device Package :
4-SIP
JESD-30 Code :
R-PSIP-W4
Terminal Position :
Single
Circuit :
Full Wave Diode Bridge
RoHS Status :
RoHS Compliant
RMS Voltage (Max) :
420(V)
Voltage - Peak Reverse (Max) :
600 V
Maximum Operating Temperature (°C) :
165
Current - Reverse Leakage @ Vr :
10 µA @ 600 V
Diode Element Material :
SILICON
Phase Type :
Single Phase
Mounting :
Through Hole
Output Current-Max :
2 A
Peak RMS Reverse Voltage (V) :
420
HTS Code :
8541.10.00.80
Manufacturer :
NTE Electronics
Qualification Status :
Not Qualified
Number of Phases :
1
Peak Non-Repetitive Surge Current (Max) :
60(A)
PCB changed :
4
Subcategory :
Bridge Rectifier Diodes
HTS :
8541.10.00.80
Voltage - Forward (Vf) (Max) @ If :
1.1 V @ 2 A
Peak Rep Rev Volt :
600(V)
Peak Average Forward Current (A) :
2@Ta=50C
Operating Temperature :
-55°C ~ 165°C (TJ)
Surface Mount :
No
Forward Voltage :
1.1(V)
Pin Count :
4
Configuration :
Single
Operating Temp Range :
-55C to 165C
Package Shape :
RECTANGULAR
Peak Reverse Current (uA) :
10
Product Status :
Active
ECCN (US) :
EAR99
Termination :
4 Pin PC mount
Peak Reverse Repetitive Voltage (V) :
600
Package :
Bag
Number of Terminals :
4
Technology :
Standard
Diode Type :
Single Phase
RoHS :
No
Non-rep Pk Forward Current-Max :
50 A
Package Width :
4.83
Reach Compliance Code :
Unknown
Series :
-
Peak Reflow Temperature (Cel) :
NOT SPECIFIED
Peak Non-Repetitive Forward Surge Current (A) :
60
Military :
No
Package Length :
14.73
Terminal Form :
Wire
Rep Pk Reverse Voltage-Max :
600 V
Current - Average Rectified (Io) :
2 A
Mounting Type :
Through Hole
Peak Forward Voltage (V) :
1.1
Bridge Type :
Single Phase
Avg. Forward Curr (Max) :
2(A)
Introducing Diodes - Bridge Rectifiers NTE Electronics, Inc. NTE169 from Chip IC,where excellence meets affordability. This product stands out with its Package / Case:4-SIP, Circuit:Full Wave Diode Bridge, Operating Temperature:-55°C ~ 165°C (TJ), Mounting Type:Through Hole, NTE169 pinout, NTE169 datasheet PDF, NTE169 amp .Beyond Diodes - Bridge Rectifiers NTE Electronics, Inc. NTE169 ,we also offer MB2S-E3/80, DF08S-T, DBF310-13, Our vast inventory has you covered. Contact us now for immediate solutions.

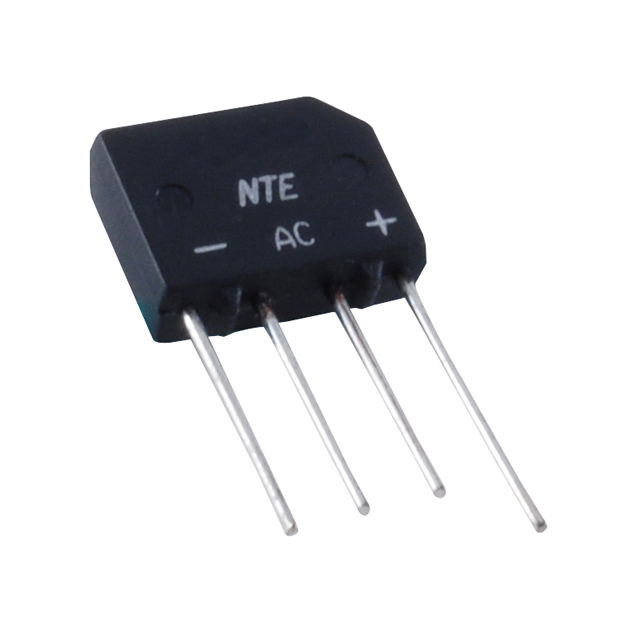

NTE Electronics, Inc. NTE169


Single Phase -55°C ~ 165°C (TJ) SILICON NOT SPECIFIED SINGLE 4-SIP

NTE169 Overview


The datasheets state that the peak forward voltage is 1.1.In this device, the reverse voltage range can reach a maximum of 420, which makes it highly efficient.A forward voltage higher than 1.1(V) is recommended for systems.This device operates at a maximum reverse voltage of 600 V based on the applicable device specifications.When used with this device, the maximum output current voltage can be read to be 2 A.
