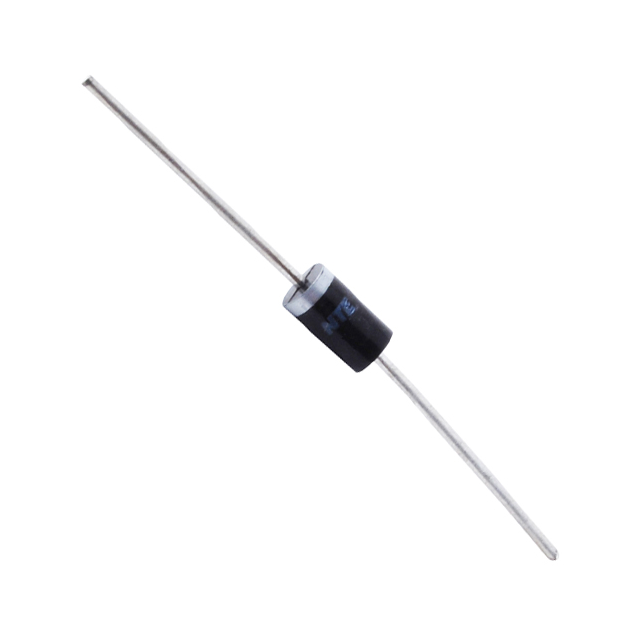

NTE156A

Manufacturer :

NTE Electronics, Inc.

Product Category :

Diodes - Rectifiers - Single

Case Connection :

Isolated

Rev Curr :

5(uA)

Number of Elements :

1

Application :

GENERAL PURPOSE

Rad Hardened :

No

Non-rep Pk Forward Current-Max :

200 A

Voltage - DC Reverse (Vr) (Max) :

1000 V

Supplier Device Package :

DO-27

Diode Type :

Standard

Operating Temperature Classification :

Military

HTS Code :

8541.10.00.80

Operating Temp Range :

-65C to 175C

Peak Rep Rev Volt :

1000(V)

Number of Phases :

1

Package Type :

DO-27A

Current - Reverse Leakage @ Vr :

5 µA @ 1000 V

Reach Compliance Code :

Unknown

Current - Average Rectified (Io) :

3A

Diode Element Material :

SILICON

Series :

-

Capacitance @ Vr, F :

-

Configuration :

Single

Operating Temperature - Junction :

-65°C ~ 175°C

Voltage - Forward (Vf) (Max) @ If :

1.2 V @ 3 A

Peak Non-Repetitive Surge Current :

200(A)

Terminal Position :

Axial

Output Current-Max :

3 A

Product Status :

Active

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Subcategory :

Rectifier Diodes

Speed :

Standard Recovery >500ns, > 200mA (Io)

Peak Reverse Current :

5(uA)

JESD-30 Code :

O-XALF-W2

Pin Count :

2

Terminal Form :

Wire

Package / Case :

DO-201AA, DO-27, Axial

Mounting Type :

Through Hole

Mounting :

Through Hole

Peak Forward Voltage :

1.2(V)

Maximum Forward Current :

3000(mA)

Rep Pk Reverse Voltage-Max :

1000 V

Forward Voltage :

1.2(V)

Package :

Bag

Surface Mount :

No

Manufacturer :

NTE Electronics

Package Shape :

Round

Additional Feature :

LOW LEAKAGE

Number of Terminals :

2

ECCN Code :

EAR99

Forward Current :

3000(mA)

Qualification Status :

Not Qualified
