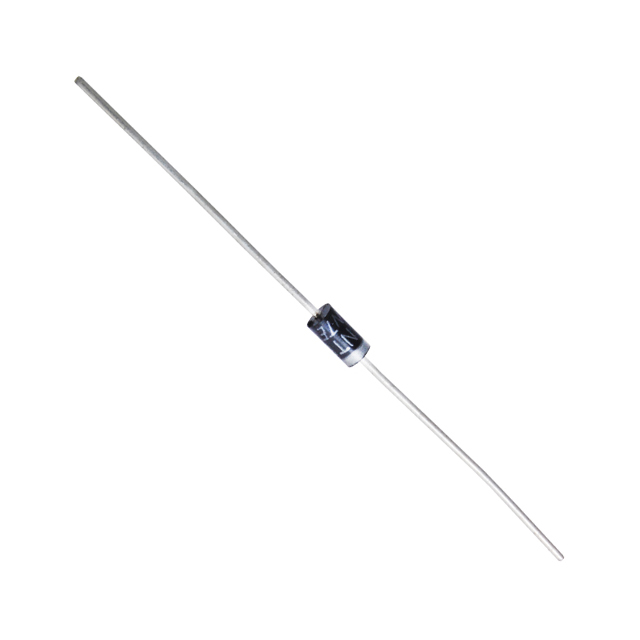

NTE151A

Manufacturer :

NTE Electronics, Inc.

Product Category :

Diodes - Zener - Single

Reach Compliance Code :

Unknown

Manufacturer :

NTE Electronics

HTS Code :

8541.10.00.50

JESD-30 Code :

O-XALF-W2

Diode Type :

ZENER DIODE

Mounting :

Through Hole

Power Dissipation :

1(W)

Diode Element Material :

SILICON

Qualification Status :

Not Qualified

Series :

-

Configuration :

Single

Subcategory :

Voltage Reference Diodes

Number of Elements :

1

Zener Voltage :

110

Number of Terminals :

2

Technology :

Zener

Rev Curr :

0.0005(mA)

Package Type :

DO-41

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Test Current (It) :

2.3(mA)

Wattage :

1

Tolerance :

5 Percent

Terminal Position :

Axial

Working Test Current :

2.3 mA

Package / Case :

DO-204AH, DO-35, Axial

Surface Mount :

No

Terminal Form :

Wire

Package :

Bag

Polarity :

Unidirectional

Type :

Voltage Regulator

Pin Count :

2

Case Connection :

Isolated

ECCN Code :

EAR99

Voltage Tolerance :

5%

Test Current :

2.3 MilliAmps

Maximum Regulator Current :

9.1(mA)

Voltage - Zener (Nom) (Vz) :

110 V

Rad Hardened :

No

Forward Voltage :

1 Volts

Product Status :

Active

Knee Impedance :

600

Voltage Tol-Max :

5%

Power Dissipation-Max :

1 W

Impedance (Max) (Zzt) :

600 Ohms

Package Shape :

Round

Power - Max :

1 W

Supplier Device Package :

DO-35

Mounting Type :

Through Hole
