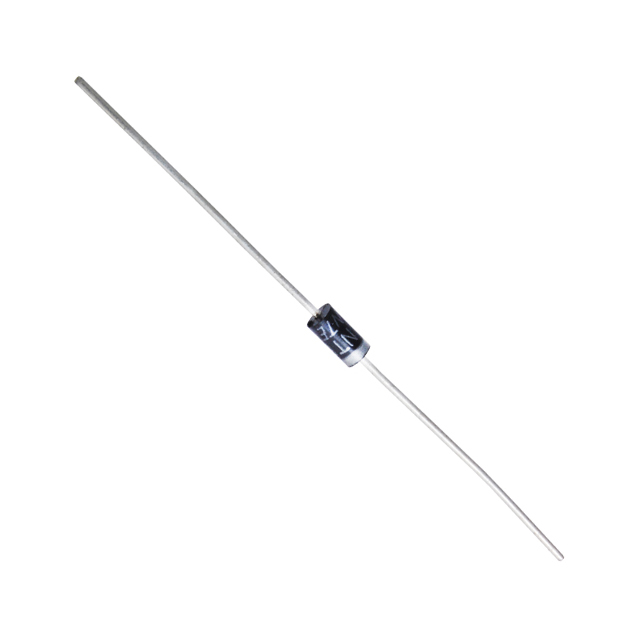

NTE150A

Manufacturer :

NTE Electronics, Inc.

Product Category :

Diodes - Zener - Single

Terminal Position :

Axial

Width :

76.2 mm

Test Current :

3 MilliAmps

HTS Code :

8541.10.00.50

Impedance :

200 Ω

Qualification Status :

Not Qualified

Impedance (Max) (Zzt) :

200 Ohms

Tolerance :

5 Percent

Forward Voltage :

1.2 Volts

Product Status :

Active

Voltage Tol-Max :

5%

Supplier Device Package :

DO-35

Package :

Bag

Number of Pins :

2

Mounting Type :

Through Hole

Number of Terminals :

2

Length :

88.9 mm

Surface Mount :

No

Technology :

Zener

Breakdown Voltage :

1.2 V

Package / Case :

DO-204AH, DO-35, Axial

Configuration :

Single

Weight :

72.574779 g

Power Dissipation-Max :

1 W

Power - Max :

1 W

Voltage - Zener (Nom) (Vz) :

82 V

Number of Elements :

1

Max Reverse Leakage Current :

5 µA

Working Test Current :

3 mA

Series :

-

Zener Voltage :

82 V

RoHS :

Compliant

Diode Element Material :

SILICON

Manufacturer :

NTE Electronics

Height :

12.7 mm

Package Shape :

Round

Terminal Form :

Wire

Reach Compliance Code :

Unknown

Polarity :

Unidirectional

ECCN Code :

EAR99

Subcategory :

Voltage Reference Diodes

Case Connection :

Isolated

Element Configuration :

Single

Mount :

Through Hole

JESD-30 Code :

O-XALF-W2

Diode Type :

ZENER DIODE

Wattage :

1
