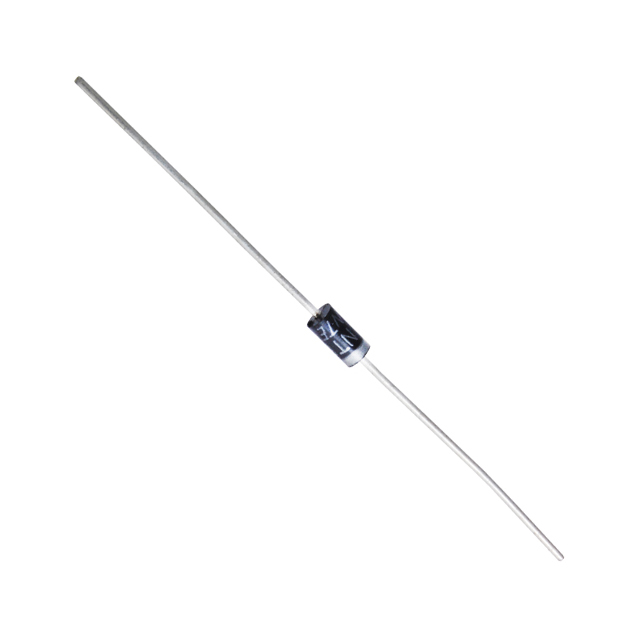

NTE144A

Manufacturer :

NTE Electronics, Inc.

Product Category :

Diodes - Zener - Single

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Package / Case :

DO-204AH, DO-35, Axial

Test Current :

18 mA

Technology :

Zener

Number of Terminals :

2

Manufacturer :

NTE Electronics Inc

Power - Max :

1 W

Zener Voltage :

14 V

Product Status :

Active

ECCN Code :

EAR99

Voltage - Zener (Nom) (Vz) :

14 V

Impedance :

12 Ω

Polarity :

Unidirectional

Surface Mount :

No

Diode Type :

ZENER DIODE

Reach Compliance Code :

Unknown

Max Reverse Leakage Current :

5 µA

Power Dissipation :

1 W

Diameter :

2.72 mm

Number of Pins :

2

Mounting Type :

Through Hole

Voltage Tol-Max :

5%

Power Dissipation-Max :

1 W

Subcategory :

Voltage Reference Diodes

Element Configuration :

Single

Package Shape :

Round

Number of Elements :

1

Length :

5.3086 mm

Terminal Position :

Axial

Diode Element Material :

SILICON

Case Connection :

Isolated

Series :

-

Supplier Device Package :

DO-35

Working Test Current :

18 mA

JESD-30 Code :

O-XALF-W2

RoHS :

Compliant

Qualification Status :

Not Qualified

Mount :

Through Hole

Configuration :

Single

HTS Code :

8541.10.00.50

Impedance (Max) (Zzt) :

12 Ohms

Terminal Form :

Wire

Package :

Bag
