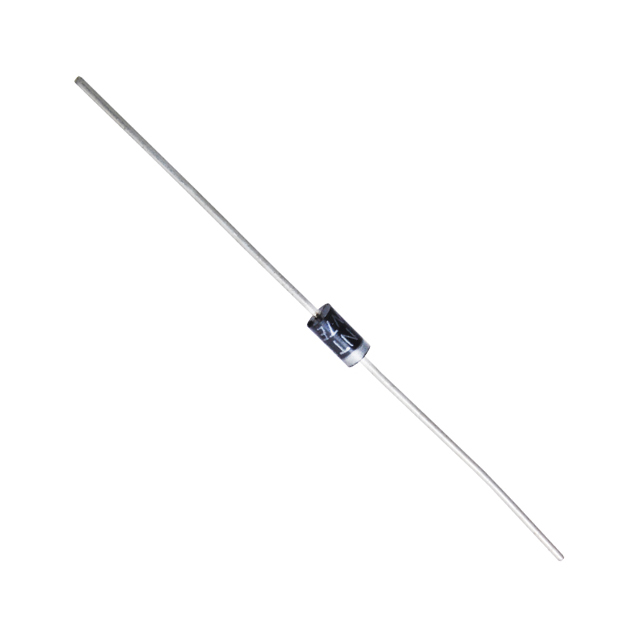

NTE143A

Manufacturer :

NTE Electronics, Inc.

Product Category :

Diodes - Zener - Single

ECCN Code :

EAR99

Power Dissipation-Max :

1 W

Width :

76.2 mm

Product Status :

Active

Technology :

Zener

Number of Elements :

1

Subcategory :

Voltage Reference Diodes

Length :

88.9 mm

Package / Case :

DO-204AH, DO-35, Axial

Terminal Position :

Axial

Number of Terminals :

2

Test Current :

19 mA

Impedance (Max) (Zzt) :

10 Ohms

Package :

Bag

Configuration :

Single

Diode Type :

ZENER DIODE

Weight :

72.574779 g

Element Configuration :

Single

Manufacturer :

NTE Electronics Inc

Polarity :

Unidirectional

Number of Pins :

2

Height :

12.7 mm

Power Dissipation :

1 W

HTS Code :

8541.10.00.50

Mounting Type :

Through Hole

Case Connection :

Isolated

Supplier Device Package :

DO-35

Reach Compliance Code :

Unknown

Zener Voltage :

13 V

Diode Element Material :

SILICON

Surface Mount :

No

Working Test Current :

19 mA

Voltage Tol-Max :

5%

Qualification Status :

Not Qualified

JESD-30 Code :

O-XALF-W2

Impedance :

10 Ω

Max Reverse Leakage Current :

5 µA

Package Shape :

Round

Voltage - Zener (Nom) (Vz) :

13 V

RoHS :

Non-Compliant

Terminal Form :

Wire

Mount :

Through Hole

Series :

-

Power - Max :

1 W

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Termination :

Axial
