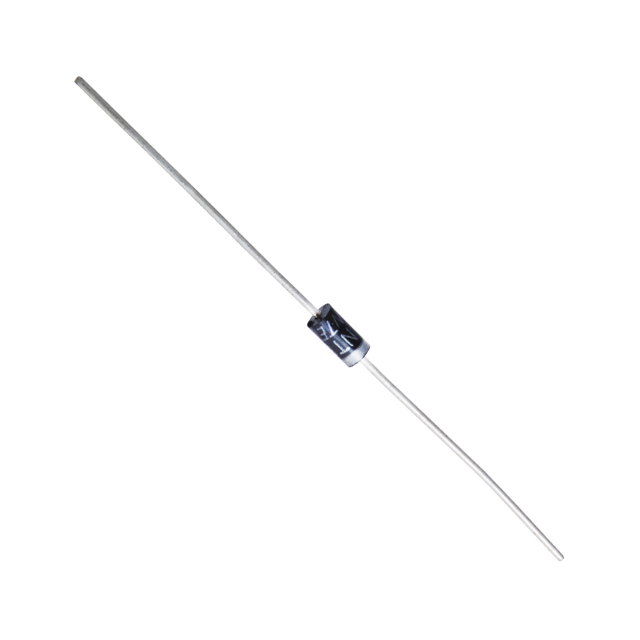

NTE142A

Manufacturer :

NTE Electronics, Inc.

Product Category :

Diodes - Zener - Single

JESD-30 Code :

O-XALF-W2

Pin Count :

2

Voltage - Zener (Nom) (Vz) :

12 V

Voltage Tol-Max :

5%

Power Dissipation-Max :

1 W

Package / Case :

DO-204AH, DO-35, Axial

HTS Code :

8541.10.00.50

Case Connection :

Isolated

Rad Hardened :

No

Package Type :

DO-41

Mounting Type :

Through Hole

Technology :

Zener

Knee Impedance :

9

Series :

-

Supplier Device Package :

DO-35

Test Current (It) :

21(mA)

Reach Compliance Code :

Unknown

Diode Element Material :

SILICON

Qualification Status :

Not Qualified

Number of Elements :

1

Package Shape :

Round

Voltage Tolerance :

5%

Polarity :

Unidirectional

ECCN Code :

EAR99

Power Dissipation :

1(W)

Configuration :

Single

Tolerance :

5 Percent

Subcategory :

Voltage Reference Diodes

Diode Type :

ZENER DIODE

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Mounting :

Through Hole

Power - Max :

1 W

Surface Mount :

No

Number of Terminals :

2

Package :

Bag

Product Status :

Active

Terminal Position :

Axial

Terminal Form :

Wire

Manufacturer :

NTE Electronics

Zener Voltage :

12

Impedance (Max) (Zzt) :

9 Ohms

Type :

Voltage Regulator

Working Test Current :

21 mA

Forward Voltage :

1.2 Volts

Rev Curr :

0.005(mA)

Test Current :

21 MilliAmps

Wattage :

1
