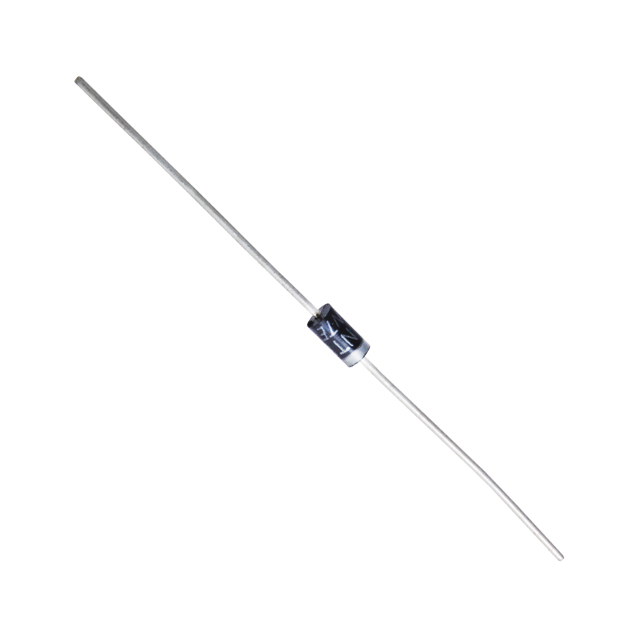

NTE141A

Manufacturer :

NTE Electronics, Inc.

Product Category :

Diodes - Zener - Single

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Working Test Current :

22 mA

Package :

Bag

Tolerance :

5 Percent

Case Connection :

Isolated

Configuration :

Single

Supplier Device Package :

DO-35

Product Status :

Active

Subcategory :

Voltage Reference Diodes

Series :

-

Wattage :

1

Forward Voltage :

1.2 Volts

Reach Compliance Code :

Unknown

ECCN Code :

EAR99

Test Current :

22 MilliAmps

Package / Case :

DO-204AH, DO-35, Axial

Voltage Tol-Max :

5%

HTS Code :

8541.10.00.50

JESD-30 Code :

O-XALF-W2

Number of Terminals :

2

Power Dissipation-Max :

1 W

Surface Mount :

No

Power - Max :

1 W

Voltage - Zener (Nom) (Vz) :

11.5 V

Qualification Status :

Not Qualified

Number of Elements :

1

Terminal Position :

Axial

Mounting Type :

Through Hole

Impedance (Max) (Zzt) :

8.5 Ohms

Polarity :

Unidirectional

Diode Type :

ZENER DIODE

Package Shape :

Round

Terminal Form :

Wire

Technology :

Zener

Diode Element Material :

SILICON

Manufacturer :

NTE Electronics
