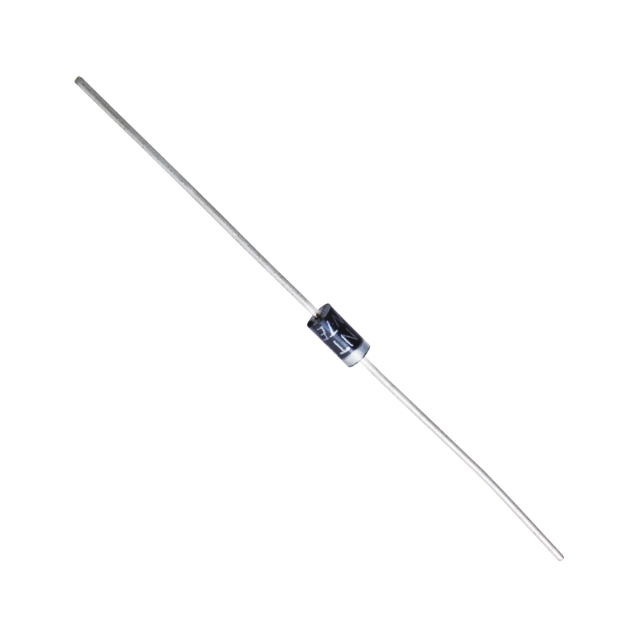

NTE140A

Manufacturer :

NTE Electronics, Inc.

Product Category :

Diodes - Zener - Single

Manufacturer :

NTE Electronics

Rad Hardened :

No

Package / Case :

DO-204AH, DO-35, Axial

Voltage - Zener (Nom) (Vz) :

10 V

Test Current :

25 MilliAmps

Wattage :

1

Terminal Form :

Wire

ECCN Code :

EAR99

Rev Curr :

0.01(mA)

Series :

-

Power Dissipation :

1(W)

Subcategory :

Voltage Reference Diodes

Working Test Current :

25 mA

Mounting :

Through Hole

Diode Element Material :

SILICON

Number of Terminals :

2

Reach Compliance Code :

Unknown

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Supplier Device Package :

DO-35

Technology :

Zener

Pin Count :

2

Test Current (It) :

25(mA)

Type :

Voltage Regulator

Mounting Type :

Through Hole

Polarity :

Unidirectional

Qualification Status :

Not Qualified

Voltage Tol-Max :

5%

JESD-30 Code :

O-XALF-W2

Terminal Position :

Axial

Product Status :

Active

Case Connection :

Isolated

Diode Type :

ZENER DIODE

Number of Elements :

1

Tolerance :

5 Percent

Surface Mount :

No

Configuration :

Single

Power Dissipation-Max :

1 W

Forward Voltage :

1.2 Volts

Zener Voltage :

10

Package Type :

DO-41

Knee Impedance :

7

Power - Max :

1 W

HTS Code :

8541.10.00.50

Voltage Tolerance :

5%

Package :

Bag

Package Shape :

Round

Impedance (Max) (Zzt) :

7 Ohms
