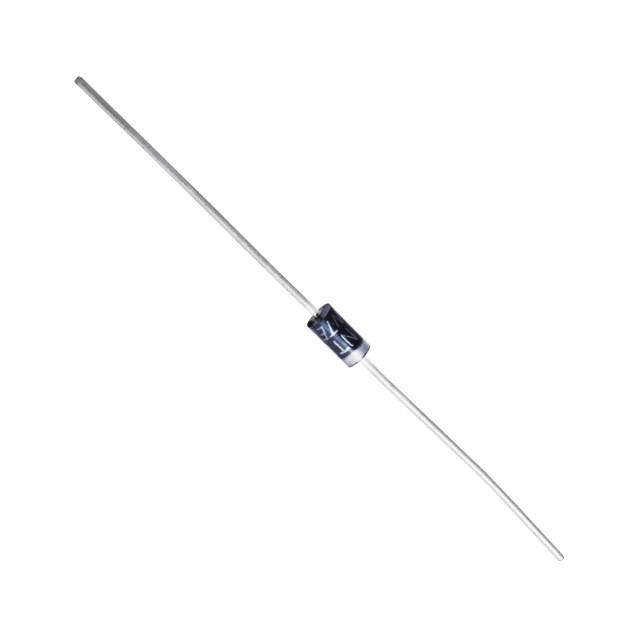

NTE138A
Or copy the link below:
- Mfr.Part #
- NTE138A
- Manufacturer
- NTE Electronics, Inc.
- Package / Case
- DO-204AH, DO-35, Axial
- Datasheet
- Download
- Description
- DIODE ZENER 7.5V 1W DO35
- Stock
- 49
- In Stock ：
- 49
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- NTE Electronics, Inc.
- Product Category :
- Diodes - Zener - Single
- Case Connection :
- Isolated
- Diode Type :
- ZENER DIODE
- Package / Case :
- DO-204AH, DO-35, Axial
- Forward Voltage :
- 1.2 Volts
- Number of Terminals :
- 2
- Power - Max :
- 1 W
- Tolerance :
- 5 Percent
- Qualification Status :
- Not Qualified
- Peak Reflow Temperature (Cel) :
- NOT SPECIFIED
- Subcategory :
- Voltage Reference Diodes
- Product Status :
- Active
- Number of Elements :
- 1
- Package :
- Bag
- Manufacturer :
- NTE Electronics
- Package Shape :
- Round
- Supplier Device Package :
- DO-35
- Polarity :
- Unidirectional
- Impedance (Max) (Zzt) :
- 4 Ohms
- Test Current :
- 34 MilliAmps
- Voltage Tol-Max :
- 5%
- Series :
- -
- Wattage :
- 1
- Mounting Type :
- Through Hole
- Diode Element Material :
- SILICON
- Terminal Position :
- Axial
- Technology :
- Zener
- Configuration :
- Single
- Terminal Form :
- Wire
- Reach Compliance Code :
- Unknown
- HTS Code :
- 8541.10.00.50
- JESD-30 Code :
- O-XALF-W2
- Working Test Current :
- 34 mA
- Power Dissipation-Max :
- 1 W
- Voltage - Zener (Nom) (Vz) :
- 7.5 V
- ECCN Code :
- EAR99
- Surface Mount :
- No
- Datasheets
- NTE138A
NTE138A Documents
ZENER DIODE 5 Percent ZENER DO-204AH, DO-35, Axial
NTE138A Overview
This value (Tol) represents the maximum voltage that can be supplied.Zener (Nom) voltage is reduced to 7.5 V during operation.This device should be operated with 34 mA as the working test voltage.
NTE138A Features
the working test voltage to 34 mA
minimal dynamic impedance is 34 mA
NTE138A Applications
There are a lot of NTE Electronics, Inc.
NTE138A applications of zener single diodes.
