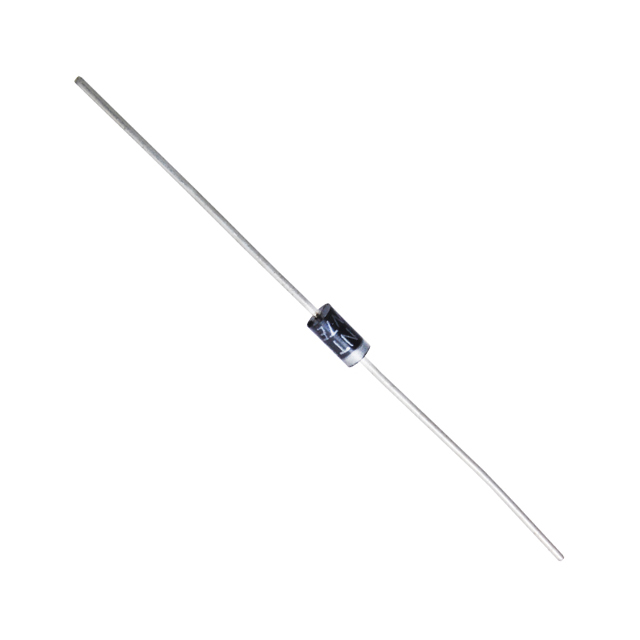

NTE136A

Manufacturer :

NTE Electronics, Inc.

Product Category :

Diodes - Zener - Single

Test Current :

45 MilliAmps

Zener Voltage :

5.6

Max Power Dissipation :

1 W

Forward Voltage :

1.2 Volts

Power Dissipation-Max :

1 W

Type :

Voltage Regulator

Wattage :

1

Working Test Current :

45 mA

Case Connection :

Isolated

Termination :

Axial

Tolerance :

5 Percent

JESD-30 Code :

O-XALF-W2

Power Dissipation :

1(W)

Configuration :

Single

Width :

76.2 mm

Package Shape :

Round

Voltage Tolerance :

5%

Element Configuration :

Single

Rev Curr :

0.01(mA)

Series :

-

ECCN Code :

EAR99

Diode Element Material :

SILICON

Product Status :

Active

Mounting :

Through Hole

Test Current (It) :

45(mA)

Max Reverse Leakage Current :

10 µA

Subcategory :

Voltage Reference Diodes

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Terminal Form :

Wire

Package / Case :

DO-204AH, DO-35, Axial

Surface Mount :

No

Manufacturer :

NTE Electronics

Length :

5.3086 mm

RoHS :

Compliant

Voltage Tol-Max :

5%

Mounting Type :

Through Hole

Polarity :

Unidirectional

Impedance :

5 Ω

Terminal Position :

Axial

Rad Hardened :

No

Voltage - Zener (Nom) (Vz) :

5.6 V

Technology :

Zener

Number of Pins :

2

Power - Max :

1 W

Weight :

4.535924 g

HTS Code :

8541.10.00.50

Height :

6.35 mm

Breakdown Voltage :

1.2 V

Diode Type :

ZENER DIODE

Package Type :

DO-41

Mount :

Through Hole

Package :

Bag

Number of Elements :

1

Impedance (Max) (Zzt) :

5 Ohms

Knee Impedance :

5

Supplier Device Package :

DO-35

Reach Compliance Code :

Unknown

REACH SVHC :

Unknown

Qualification Status :

Not Qualified

Pin Count :

2

Number of Terminals :

2

Diameter :

2.72 mm
