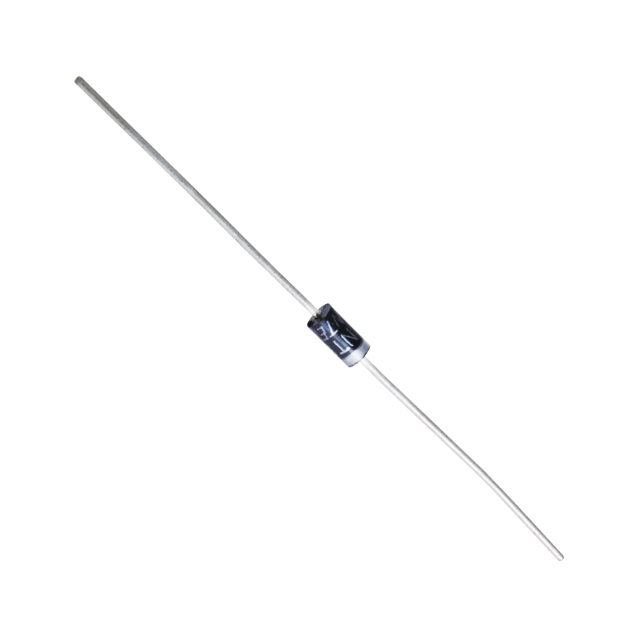

NTE134A

Manufacturer :

NTE Electronics, Inc.

Product Category :

Diodes - Zener - Single

Terminal Form :

Wire

Product Status :

Active

Package Shape :

Round

Forward Voltage :

1.2 Volts

Tolerance :

5 Percent

Power Dissipation-Max :

1 W

Package :

Bag

Voltage Tol-Max :

5%

Element Configuration :

Single

RoHS :

Compliant

Zener Voltage :

3.6 V

Diode Element Material :

SILICON

Impedance :

10 Ω

Subcategory :

Voltage Reference Diodes

Series :

-

Package / Case :

DO-204AH, DO-35, Axial

Number of Elements :

1

Mount :

Through Hole

Qualification Status :

Not Qualified

Case Connection :

Isolated

Diode Type :

ZENER DIODE

Wattage :

1

Supplier Device Package :

DO-35

Voltage - Zener (Nom) (Vz) :

3.6 V

Technology :

Zener

Configuration :

Single

Test Current :

69 MilliAmps

Power - Max :

1 W

Reach Compliance Code :

Unknown

Manufacturer :

NTE Electronics

Mounting Type :

Through Hole

Number of Terminals :

2

Surface Mount :

No

Impedance (Max) (Zzt) :

10 Ohms

Length :

88.9 mm

Number of Pins :

2

JESD-30 Code :

O-XALF-W2

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Working Test Current :

69 mA

Max Reverse Leakage Current :

100 µA

ECCN Code :

EAR99

Polarity :

Unidirectional

Weight :

4.535924 g

HTS Code :

8541.10.00.50

Width :

76.2 mm

Height :

6.35 mm

Terminal Position :

Axial
