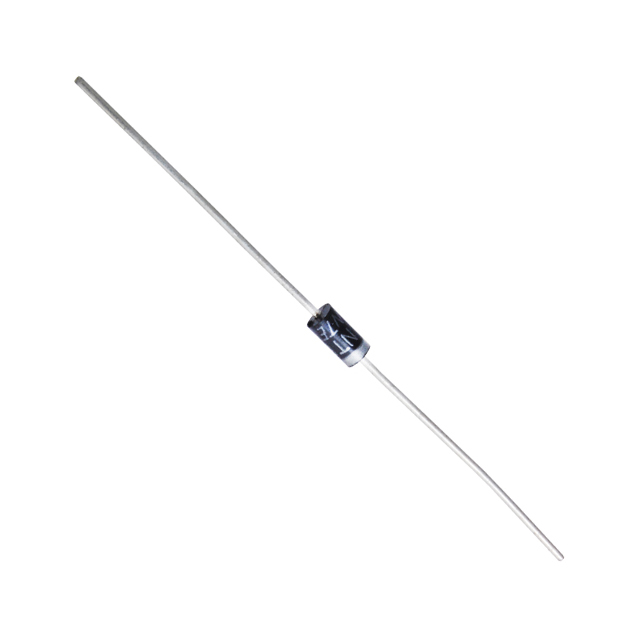

NTE125

Manufacturer :

NTE Electronics, Inc.

Product Category :

Diodes - Rectifiers - Single

Peak Reverse Current :

10(uA)

Diameter :

2.72(Max)

Package Type :

DO-41

Max Forward Surge Current (Ifsm) :

50 A

Operating Temp Range :

-65C to 175C

Pin Count :

2

Element Configuration :

Single

Current Rating :

2.5 A

Length :

5.3086 mm

Mount :

Surface Mount, Through Hole

Rev Curr :

10(uA)

RoHS Status :

RoHS Compliant

Peak Non-Repetitive Surge Current (A) :

50

PCB changed :

2

Minimum Operating Temperature (°C) :

-65

Rad Hardened :

No

Max Repetitive Reverse Voltage (Vrrm) :

1 kV

Standard Package Name :

DO-204-AL

Package Length :

5.33(Max)

Peak Reverse Repetitive Voltage (V) :

1000

Peak Rep Rev Volt :

1000(V)

Height :

2.7178 mm

Maximum Continuous Forward Current (A) :

1@Ta=75C

Peak Non-Repetitive Surge Current :

50(A)

HTS :

8541.10.00.80

Peak Forward Voltage :

1.1(V)

Polarity :

Standard

Mounting :

Through Hole

Configuration :

Single

Number of Pins :

2

Min Operating Temperature :

-65 °C

Operating Temperature Classification :

Military

Military :

No

Forward Voltage :

1.1(V)

REACH SVHC :

No SVHC

Lead Shape :

Through Hole

Manufacturer :

NTE Electronics

Schedule B :

8541100080, 8541100080/8541100080/8541100080/8541100080/8541100080

Supplier Package :

DO-41

Automotive :

No

RoHS :

Compliant

Forward Current :

1 A

Maximum Operating Temperature (°C) :

175

Peak Reverse Current (uA) :

10

Peak Forward Voltage (V) :

1.1

Material :

Si

ECCN (US) :

EAR99

Max Operating Temperature :

175 °C

Width :

863.6 μm
