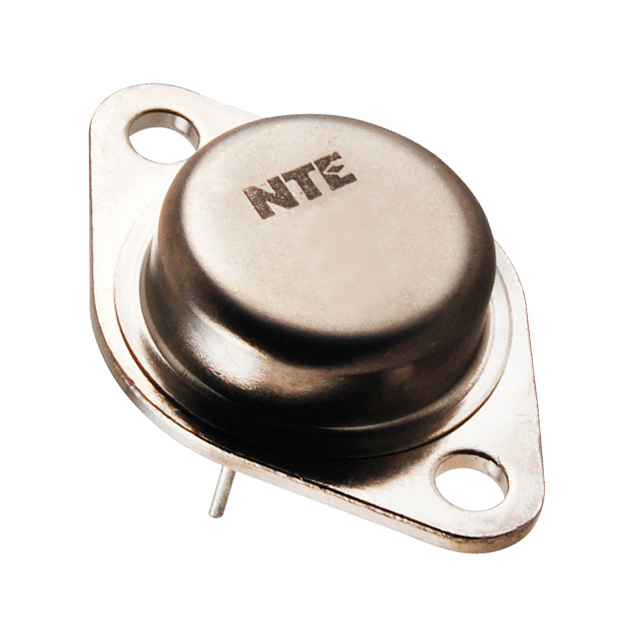

NTE121MP

Manufacturer :

NTE Electronics, Inc.

Product Category :

Transistors - Bipolar (BJT) - Single

Subcategory :

Other Transistors

Collector Current-Max (IC) :

5 A

Category :

Bipolar Power

Frequency - Transition :

300kHz

DC Current Gain-Min (hFE) :

75

Power - Max :

90 W

Number of Terminals :

2

Package Shape :

Round

Polarity/Channel Type :

PNP

Emitter-Base Voltage :

10(V)

Power Dissipation :

90(W)

Operating Temperature :

100°C (TJ)

Configuration :

Single

Manufacturer :

NTE Electronics

Product Status :

Active

Pin Count :

2 +Tab

Collector-Emitter Voltage-Max :

30 V

Collector-Base Voltage :

60(V)

Transistor Application :

AMPLIFIER

Qualification Status :

Not Qualified

Current - Collector (Ic) (Max) :

10 A

Transistor Type :

PNP

DC Current Gain (hFE) (Min) @ Ic, Vce :

50 @ 1A, 2V

Operating Temperature Classification :

INDUSTRIALC

Package / Case :

TO-204AA, TO-3

Collector Current (DC) :

10(A)

Number of Elements :

1

Transistor Element Material :

GERMANIUM

Voltage - Collector Emitter Breakdown (Max) :

45 V

ECCN Code :

EAR99

Power Dissipation Ambient-Max :

106 W

Rad Hardened :

No

Supplier Device Package :

TO-3

Mounting Type :

Through Hole

DC Current Gain :

50@20MA@2V

Series :

-

Current - Collector Cutoff (Max) :

500μA (ICBO)

Reach Compliance Code :

Unknown

Additional Feature :

MATCHED PAIR OF NTE121

Output Power :

Not Required(W)

JESD-30 Code :

O-MBFM-P2

Terminal Position :

BOTTOM

JEDEC-95 Code :

TO-3

Surface Mount :

No

Package Type :

TO-3

Vce Saturation (Max) @ Ib, Ic :

300mV @ 1A, 10A

Case Connection :

COLLECTOR

Frequency :

300(MHz)

Transistor Polarity :

PNP

Terminal Form :

PIN/PEG

Package :

Bag

Operating Temp Range :

-55C to 100C

Mounting :

Through Hole
