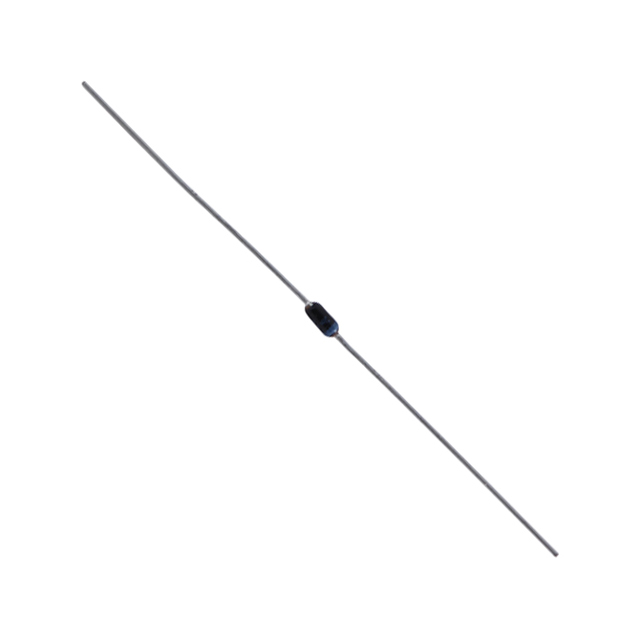

NTE112

Manufacturer :

NTE Electronics, Inc.

Product Category :

Diodes - Rectifiers - Single

Technology :

Schottky

Supplier Device Package :

DO-35

Breakdown Voltage-Min :

5 V

Diode Type :

Schottky

Output Current-Max :

25 A

Subcategory :

Microwave Mixer Diodes

Surface Mount :

No

Configuration :

Single

Qualification Status :

Not Qualified

Voltage - DC Reverse (Vr) (Max) :

5 V

Diode Capacitance-Max :

1 pF

Number of Terminals :

2

Operating Temperature - Junction :

125°C

Package / Case :

DO-204AH, DO-35, Axial

Frequency Band :

ULTRA HIGH FREQUENCY

Number of Elements :

1

Product Status :

Active

Case Connection :

Isolated

HTS Code :

8541.10.00.60

Terminal Position :

Axial

Series :

-

Voltage - Forward (Vf) (Max) @ If :

550 mV @ 10 mA

Manufacturer :

NTE Electronics

Capacitance @ Vr, F :

1pF @ 0V, 1MHz

Package :

Bag

Mounting Type :

Through Hole

Package Shape :

Round

Current - Reverse Leakage @ Vr :

50 nA @ 1 V

Speed :

Small Signal =< 200mA (Io), Any Speed

Terminal Form :

Wire

Reach Compliance Code :

Unknown

Diode Element Material :

SILICON

JESD-30 Code :

O-PALF-W2

JEDEC-95 Code :

DO-35

ECCN Code :

EAR99

Current - Average Rectified (Io) :

30mA
