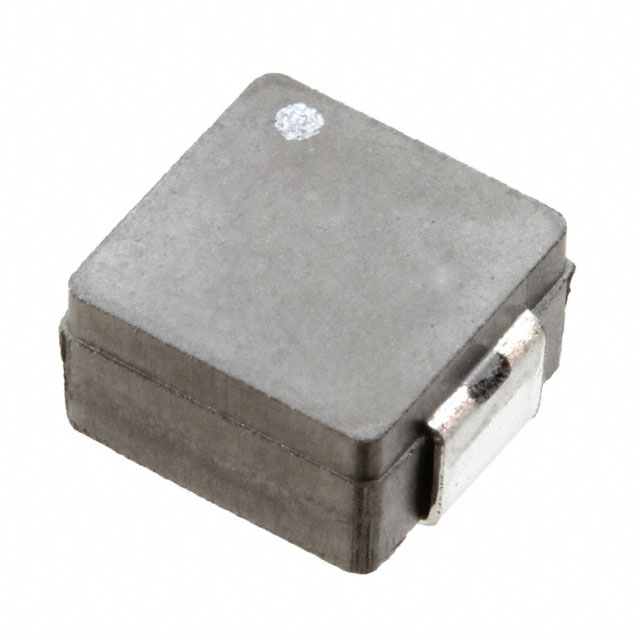

MPLCH0740L2R2

Manufacturer :

KEMET

Product Category :

Fixed Inductors

HTS Code :

8504.50.80.00

Surface Mount :

yes

Shielding :

Shielded

Core Material :

Composite

Current - Saturation :

9A

Size / Dimension :

0.307Lx0.264W 7.80mmx6.70mm

Inductance Tolerance :

20%

Published :

2013

Package / Case :

Nonstandard

Terminal Shape :

WRAPAROUND

Mounting Type :

Surface Mount

Shape/Size Description :

RECTANGULAR PACKAGE

Type :

Wirewound

Number of Terminations :

2

Series :

MPLCH

DC Resistance (DCR) :

13mOhm Max

Rated Current-Max :

9.3A

Tolerance :

±20%

Current Rating (Amps) :

9.3A

Height Seated (Max) :

0.157 4.00mm

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Packaging :

Tape and Reel (TR)

Factory Lead Time :

17 Weeks

RoHS Status :

ROHS3 Compliant

Test Frequency :

0.1MHz

ECCN Code :

EAR99

Inductor Application :

POWER INDUCTOR

Inductance Frequency - Test :

100kHz

Inductance :

2.2μH

Number of Functions :

1

Operating Temperature :

-20°C~120°C

Terminal Placement :

DUAL ENDED
