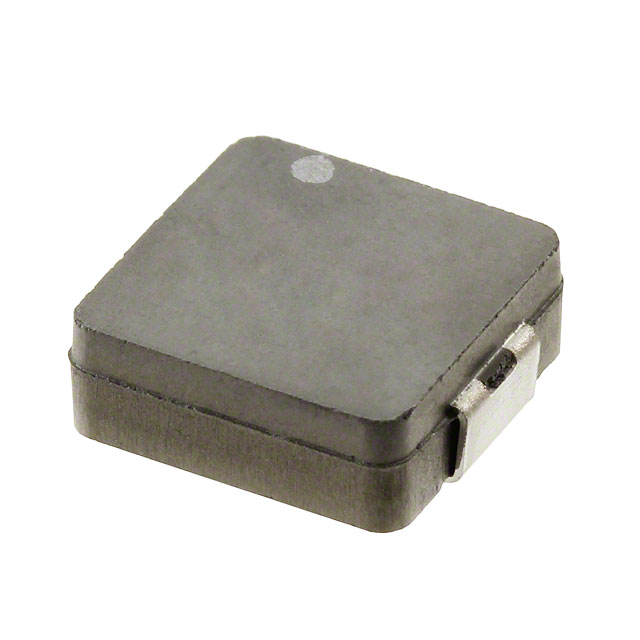

MPLC1040L4R7

Manufacturer :

KEMET

Product Category :

Fixed Inductors

Terminal Placement :

DUAL ENDED

DC Resistance (DCR) :

19mOhm Max

Mounting Type :

Surface Mount

Type :

Wirewound

Series :

MPLC

Test Frequency :

0.1MHz

Shielding :

Shielded

Terminal Shape :

WRAPAROUND

Inductance Tolerance :

20%

Operating Temperature :

-20°C~120°C

RoHS Status :

ROHS3 Compliant

Current Rating (Amps) :

8A

Package / Case :

2-SMD, J-Lead

Surface Mount :

yes

ECCN Code :

EAR99

Number of Functions :

1

Height Seated (Max) :

0.157 4.00mm

Inductance Frequency - Test :

100kHz

Factory Lead Time :

29 Weeks

Published :

2006

Tolerance :

±20%

Inductor Application :

POWER INDUCTOR

HTS Code :

8504.50.80.00

Shape/Size Description :

RECTANGULAR PACKAGE

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Core Material :

Composite

Inductance :

4.7μH

Number of Terminations :

2

Size / Dimension :

0.453Lx0.394W 11.50mmx10.00mm

Rated Current-Max :

8A

Packaging :

Tape and Reel (TR)
