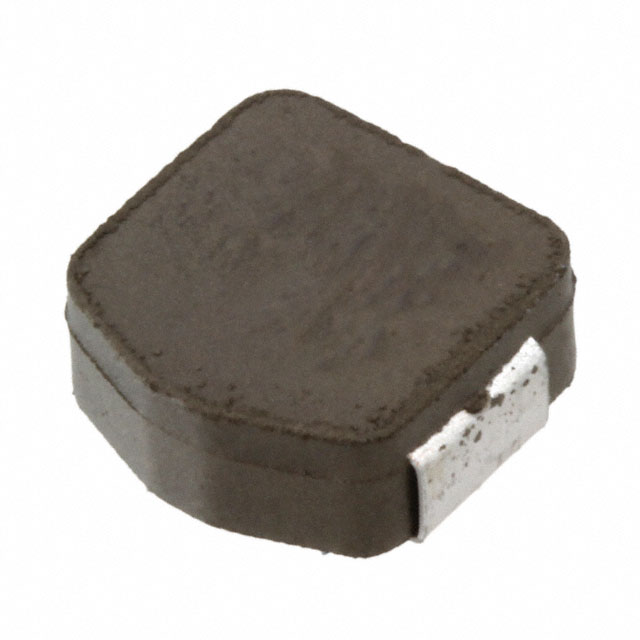

MPLCG0630L2R2

Manufacturer :

KEMET

Product Category :

Fixed Inductors

Mounting Type :

Surface Mount

Rated Current-Max :

8.2A

Inductance Frequency - Test :

100kHz

Inductance :

2.2μH

DC Resistance (DCR) :

19mOhm Max

Shape/Size Description :

RECTANGULAR PACKAGE

Surface Mount :

yes

Current Rating (Amps) :

8.2A

Type :

Wirewound

Terminal Shape :

WRAPAROUND

HTS Code :

8504.50.80.00

Size / Dimension :

0.295Lx0.264W 7.50mmx6.70mm

Factory Lead Time :

20 Weeks

Terminal Placement :

DUAL ENDED

Operating Temperature :

-20°C~120°C

Inductor Application :

POWER INDUCTOR

Inductance Tolerance :

20%

Number of Functions :

1

Series :

MPLCG

Test Frequency :

0.1MHz

Shielding :

Shielded

Current - Saturation :

7.8A

Material - Core :

Metal Composite

ECCN Code :

EAR99

Height Seated (Max) :

0.118 3.00mm

Tolerance :

±20%

RoHS Status :

ROHS3 Compliant

Packaging :

Tape and Reel (TR)

Published :

1997

Number of Terminations :

2

Package / Case :

Nonstandard

Moisture Sensitivity Level (MSL) :

1 (Unlimited)
