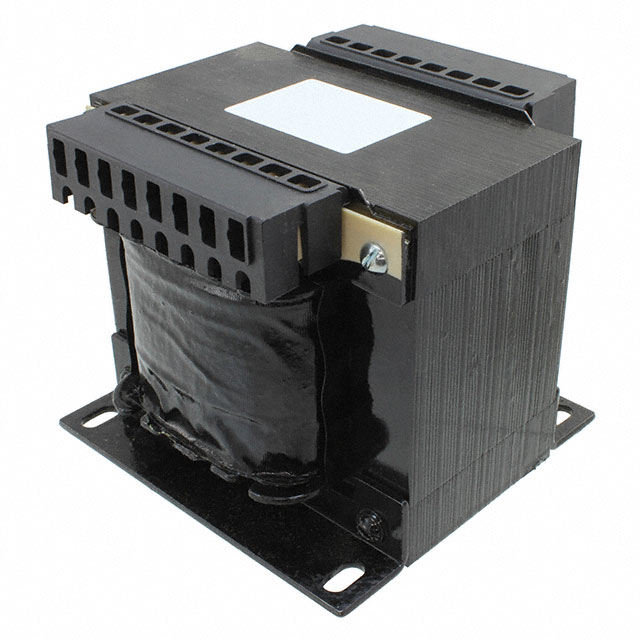

MPI-900-12

Manufacturer :

Signal Transformer

Product Category :

Power Transformers

Primary Winding(s) :

Dual, Multiple Taps

Mount :

Chassis Mount

Output Voltage 1 :

6V

Size / Dimension :

133.30mm Lx139.70mm W

Width :

132mm

Weight :

20lbs 9.1kg

Lead Free :

Lead Free

Secondary Winding(s) :

Dual

Approval Agency :

UL; CSA

Mounting Type :

Chassis Mount

Published :

2009

Additional Feature :

TAPPED PRIMARIES ARE ALSO AVAILABLE

HTS Code :

8504.31.40.65

Factory Lead Time :

16 Weeks

Termination Style :

Terminal Block

Type :

Laminated Core

Max Power Dissipation :

900W

Series :

MPI

Voltage - Isolation :

4000Vrms

Moisture Sensitivity Level (MSL) :

Not Applicable

VA Rating :

900 VA

Power - Max :

900VA

Current - Output (Max) :

Parallel 150A Series 75A

Center Tap :

No

Voltage - Secondary (Full Load) :

Parallel 6V Series 12V

Height Seated (Max) :

117.80mm

Termination :

Terminal Block

ECCN Code :

EAR99

Output Voltage 2 :

6V

Length :

133.3mm

Height :

118mm

Voltage - Primary :

100V 115V 200V 215V 230V

Max Output Current :

75A

Physical Dimension :

133.3mm X 132mm X 121.9mm

RoHS Status :

ROHS3 Compliant
