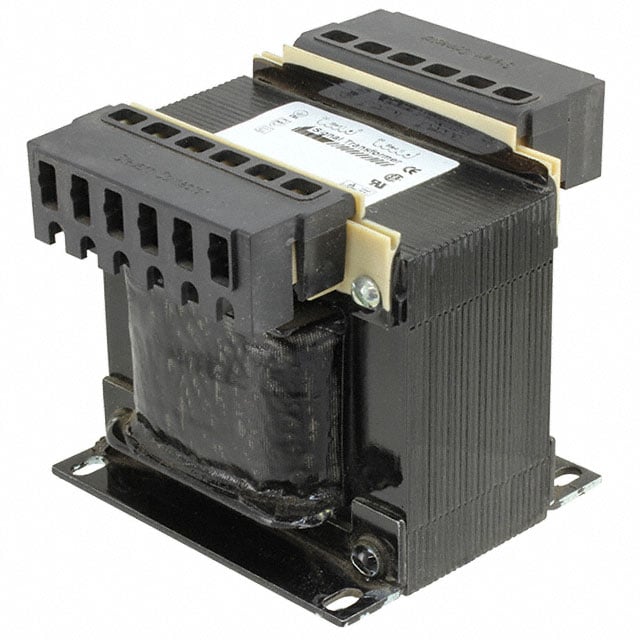

MPI-200-40

Manufacturer :

Signal Transformer

Product Category :

Power Transformers

Series :

MPI

Max Power Dissipation :

200W

Height :

93.1mm

Primary Winding(s) :

Dual, Multiple Taps

Voltage - Primary :

100V 115V 200V 215V 230V

Additional Feature :

TAPPED PRIMARIES ARE ALSO AVAILABLE

Current - Output (Max) :

Parallel 10A Series 5A

Lead Free :

Lead Free

RoHS Status :

ROHS3 Compliant

Size / Dimension :

95.30mm Lx113.30mm W

ECCN Code :

EAR99

Max Output Current :

5A

Secondary Winding(s) :

Dual

Weight :

6.3lbs 2.9kg

Physical Dimension :

95.3mm X 106.6mm X 94.5mm

Output Voltage 1 :

20V

Voltage - Secondary (Full Load) :

Parallel 20V Series 40V

Published :

2009

Width :

106.6mm

Type :

Laminated Core

Output Voltage 2 :

20V

Length :

95.3mm

Moisture Sensitivity Level (MSL) :

Not Applicable

Termination :

Terminal Block

Mounting Type :

Chassis Mount

VA Rating :

200 VA

Power - Max :

200VA

Approval Agency :

UL; CSA

Height Seated (Max) :

93.10mm

Center Tap :

No

Mount :

Chassis Mount

HTS Code :

8504.31.40.65

Voltage - Isolation :

4000Vrms

Factory Lead Time :

14 Weeks

Termination Style :

Terminal Block
