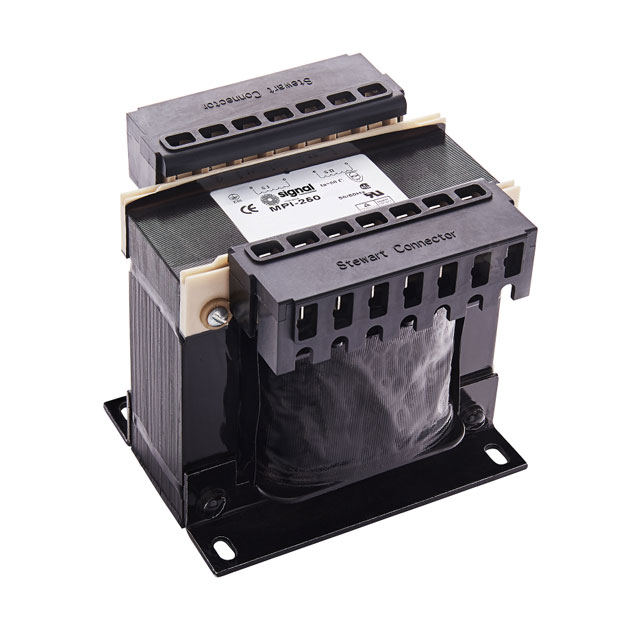

MPI-250-20

Manufacturer :

Signal Transformer

Product Category :

Power Transformers

Height :

98.2mm

Voltage - Isolation :

4000Vrms

Width :

99mm

Factory Lead Time :

16 Weeks

Voltage - Primary :

100V 115V 200V 215V 230V

Secondary Winding(s) :

Dual

Center Tap :

No

Series :

MPI

RoHS Status :

ROHS3 Compliant

Power - Max :

250VA

Output Voltage 1 :

10V

Termination Style :

Terminal Block

Output Voltage 2 :

10V

HTS Code :

8504.31.40.65

Termination :

Terminal Block

Voltage - Secondary (Full Load) :

Parallel 10V Series 20V

Max Power Dissipation :

250W

Moisture Sensitivity Level (MSL) :

Not Applicable

Mount :

Chassis Mount

Primary Winding(s) :

Dual, Multiple Taps

Lead Free :

Lead Free

Approval Agency :

UL; CSA

ECCN Code :

EAR99

VA Rating :

250 VA

Max Output Current :

12.5A

Current - Output (Max) :

Parallel 25A Series 12.5A

Size / Dimension :

104.80mm Lx104.90mm W

Weight :

6.8lbs 3.1kg

Type :

Laminated Core

Length :

104.8mm

Physical Dimension :

104.8mm X 99mm X 101.6mm

Published :

2009

Height Seated (Max) :

98.20mm

Mounting Type :

Chassis Mount

Additional Feature :

TAPPED PRIMARIES ARE ALSO AVAILABLE
